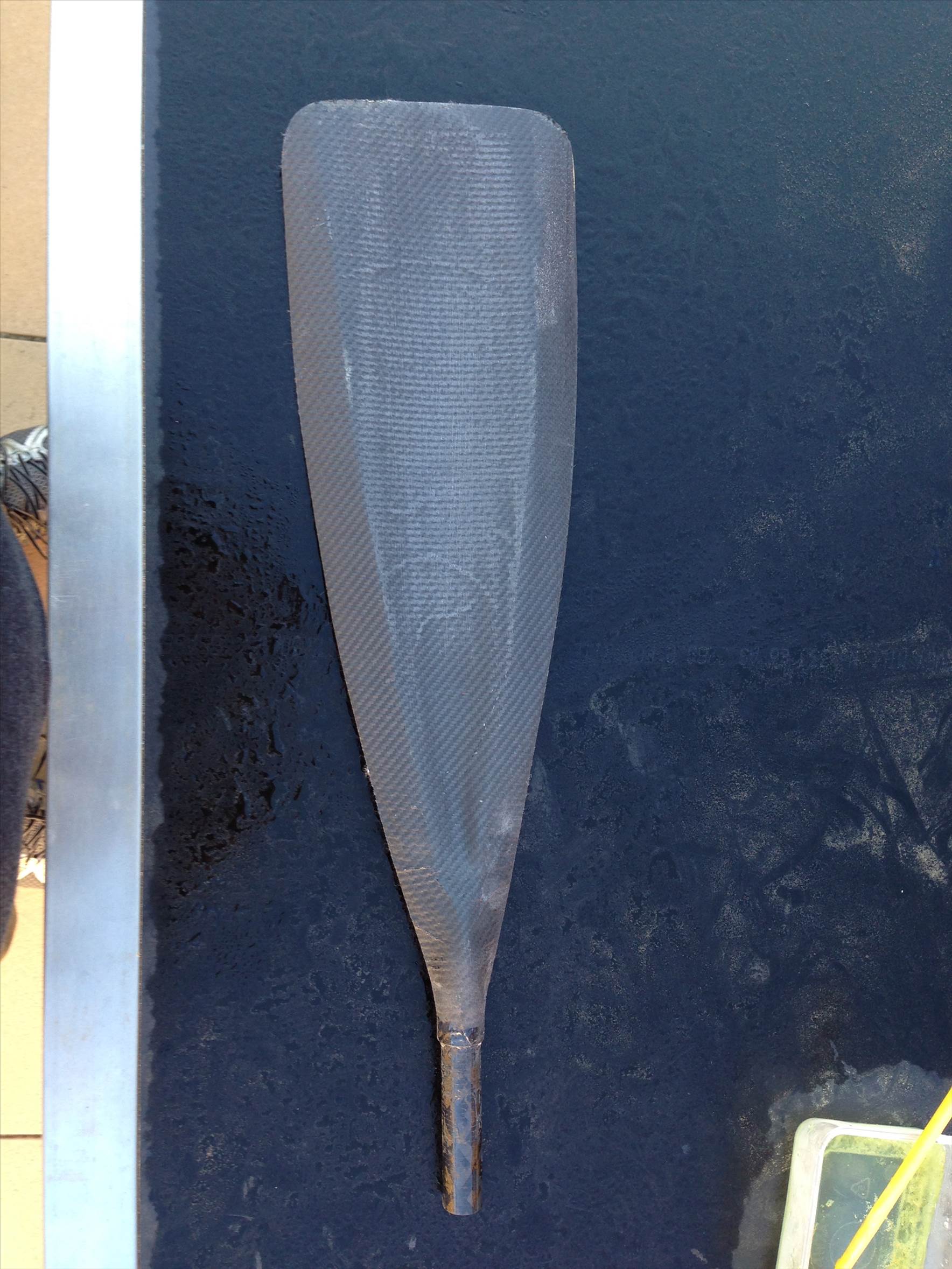

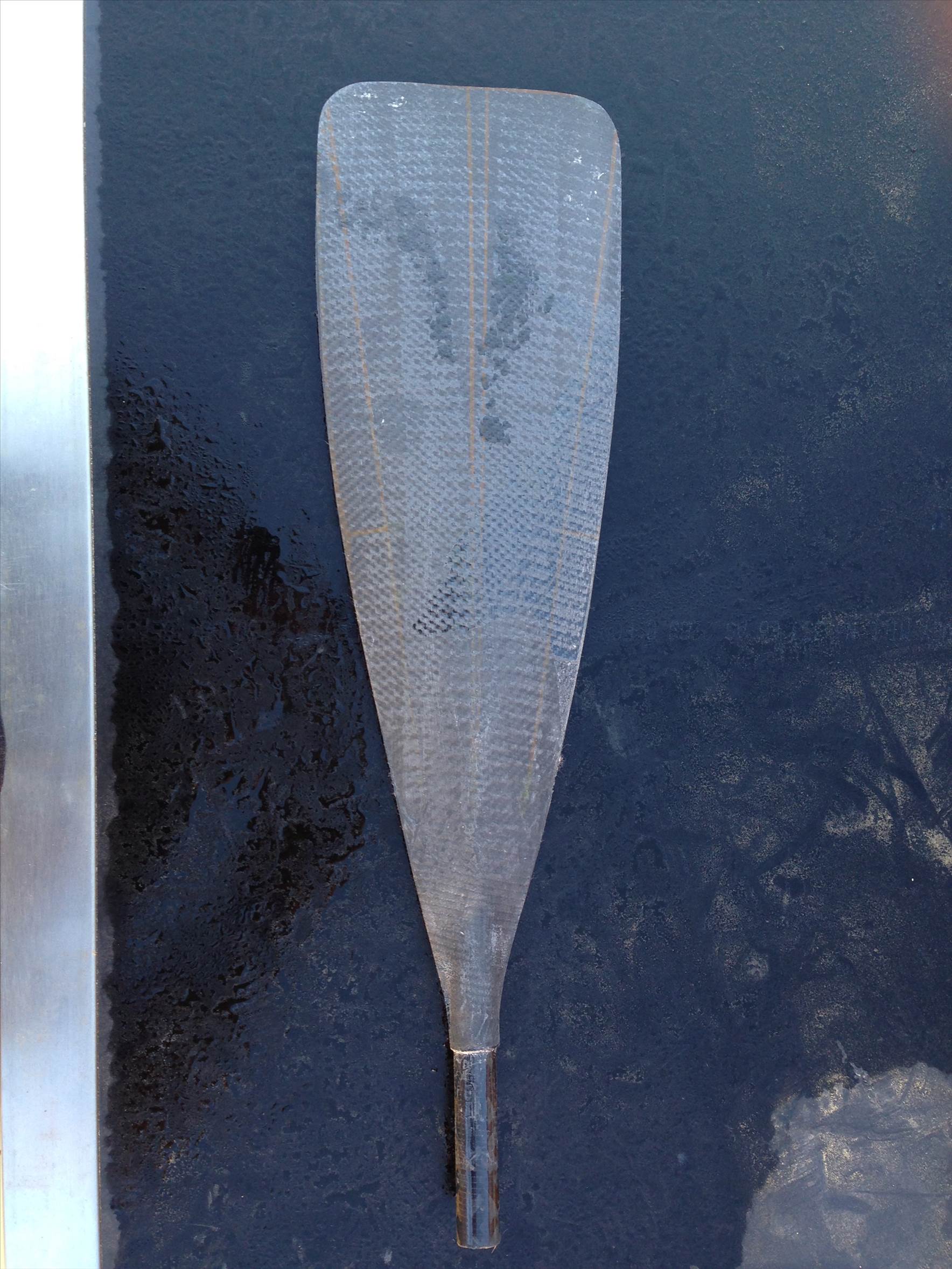

Managed to knock this up over the weekend. 6.5" x 20" and 90 sq.in. My second paddle.

Still needs to be cleaned up and finished properly

What are your thoughts?

Hi Magillamelb, thanks to show me the way to how to it again.

About build, did you do the paddle with paulawnia wood

about the paddle shape, is it a race or a surf one

Good job, i would like to do it

Rear skin moulded using crude mould. Used 10mm PVC foam for core and shaped it.
Vacuum infused front face.

Flat water paddle.

hats off to you

Great job.. I got to feel and touch it yesterday.. It will be interesting to see how it paddles..

Have we decided on a name yet..

Warp drive.. Sex drive..

Select to expand quote

DavidJohn said...
Have we decided on a name yet..

Warp drive.. Sex drive..

Long drive, by the looks of it. You should shape for Starboard...

It will be interesting to see if the "v-drive" concept works as well with a longer narrower paddle since it is a design that works principally at the catch I think. Interesting work.

Select to expand quote

DavidJohn said..
Great job.. I got to feel and touch it yesterday.. It will be interesting to see how it paddles..

Have we decided on a name yet..

Warp drive.. Sex drive..

Warp Drive DJ...

Select to expand quote

magillamelb said..

DavidJohn said..
Great job.. I got to feel and touch it yesterday.. It will be interesting to see how it paddles..

Have we decided on a name yet..

Warp drive.. Sex drive..

Warp Drive DJ...

Let's hope so..

Select to expand quote

Area10 said..

DavidJohn said...
Have we decided on a name yet..

Warp drive.. Sex drive..

Long drive, by the looks of it. You should shape for Starboard...

It will be interesting to see if the "v-drive" concept works as well with a longer narrower paddle since it is a design that works principally at the catch I think. Interesting work.

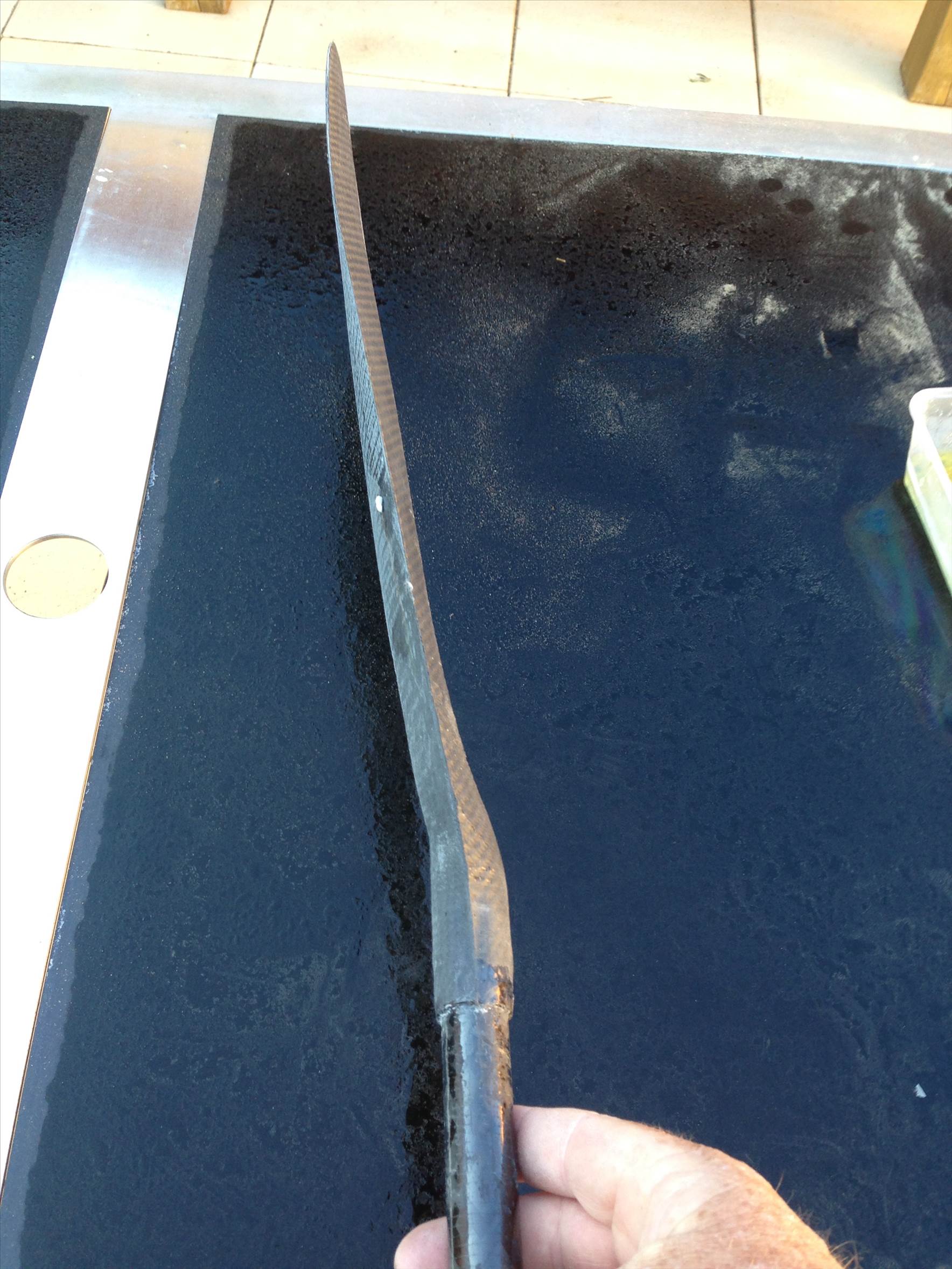

Area 10, the bottom of the paddle is very similar to any other in that it's a flattish blade, but it thickens very quickly (like 1mm in 10mm) to produce those 'V' ridges which are 10mm thick. The core in the centre of the paddle is almost non existent half way up the blade and then tapers to around 8mm thick.

This one is way overbuilt, but I've been asked to produce an 80 sq.in version to trial. It will be somewhat less agricultural...

Stuey
You are very talented at this the of thing...can't wait to see the results of your next project!
