Hey - Does anyone know where I can buy a sheet of good marine grade wood in Perth, to make a TT ??

Also I have a few innovative ideas for an Ultra Lightwind TT - that will make a very interesting project, so if you have a little experience in making one and interested in helping out - I will fund it... and provide beer

send me a Pm
kyteryder
kyteryder
NSW
692 posts
NSW, 692 posts
10 Apr 2012 8:41pm
If you are going to epoxy over the wood, you can use standard plywood and not marine grade.
wdric
wdric
NSW
1625 posts
NSW, 1625 posts
10 Apr 2012 9:08pm
kyteryder said...

If you are going to epoxy over the wood, you can use standard plywood and not marine grade.


+1
Any good quality ply will do the job if being coated with epoxy


James
James
WA
549 posts
WA, 549 posts
10 Apr 2012 7:10pm
Howzit, made a few boards over the years. You don't need to buy marine grade, the aussie made B B exterior (you can buy this in Spearwood) is more than sufficient, they use the same glue to make this as they use for the marine grade, only diff is marine grade has an A A finish, both sides have no imperfections. The imported BS (that's british standard boys ) marine grade ply is much darker in colour and has way more flex.

The 3 mm thick stuff from Bunnings costs around 15 to 20 bucks a sheet and if I was looking at making an ultra light wind TT, it's what I would use. I would make it hollow with polystyrene infill with at least one stringer. I made a board using this method, (got the low down from a guy called Alex I met at Pinna's a couple of years back)structurally and build quality wise, it turned out well, but the shape was'nt right for chop so I binned it. Might have a bash again this winter.

For an Ultra light wind TT , maybe try and find a s/h SS Glide or the other one Cabrinha made, can't remember the name . That way , you can spend winter riding your pushie, save you a lot of heartache , J
Plummet
Plummet
4862 posts
4862 posts
10 Apr 2012 7:16pm
im making mine out of bamboo
SaveTheWhales
SaveTheWhales
WA
1908 posts
WA, 1908 posts
10 Apr 2012 7:23pm
Hey James,

Thanks for the info recomendations thats awesome.
I have a very good light wind kite to power it, so no worries there. As for the board - well it wont be a normal TT.... and if my imagination can simulate into a kiteboard what Ive already seen (outside the box idea) - it should go like a rocket in very light wind unless the beers get drunk before construction

Cheers
cauncy
cauncy
WA
8407 posts
WA, 8407 posts
10 Apr 2012 7:27pm
Paulwonia, is the premier timber core , virtually unbreakable lightweight, huge flex, I'm trying to source it in sheet form for a board project , its the timber that most board manufacturers use
Skid
Skid
QLD
1499 posts
QLD, 1499 posts
10 Apr 2012 10:28pm
While it is true that many plywoods are made with waterproof glue, marine ply is made with defect free plys throughout (other grades can have defects in the internal layers). Given the time it can take to make a board, consider spending the extra $ to get marine ply so you don't have any surprises it you load it hard during a heavy landings. Particularly if you are going to 'taper' the edges.
Have fun, it is a good feeling riding a board you have made yourself.



nmspencer
nmspencer
4 posts
4 posts
10 Apr 2012 8:31pm
If your looking for Paulownia try here paulowniatimber.com.au

keen see few pics of the finished board

fjordfiend
fjordfiend
WA
93 posts
WA, 93 posts
10 Apr 2012 9:40pm
Ive made a few boards of my own, ply twinnies, solid balsa, hollow paulownia, traditional alai a etc . Ply is the quickest, cheapest and easiest construction.
Laminate two sheets together with epoxy , wedge up either end for rocker and weigh down with sand while the glue sets then cut the outline and sand the rails. with marine ply you could get away without glass and just paint with epoxy to seal.
High point timber in rocking ham sell paulownia in all shapes and sizes.
I also have 3/4 of a sheet of 6 mm marine ply left over from a boat building project that you can have if you want to collect it
dbabicwa
dbabicwa
WA
808 posts
WA, 808 posts
10 Apr 2012 9:47pm
Give Damo a call at Airborne Kitesurfing Osborne Park.

Got TT Paulownia blanks and inserts from him for my next project:

downunderbloghr.blogspot.com/

Bamboo is fine, a bit heavy tho.

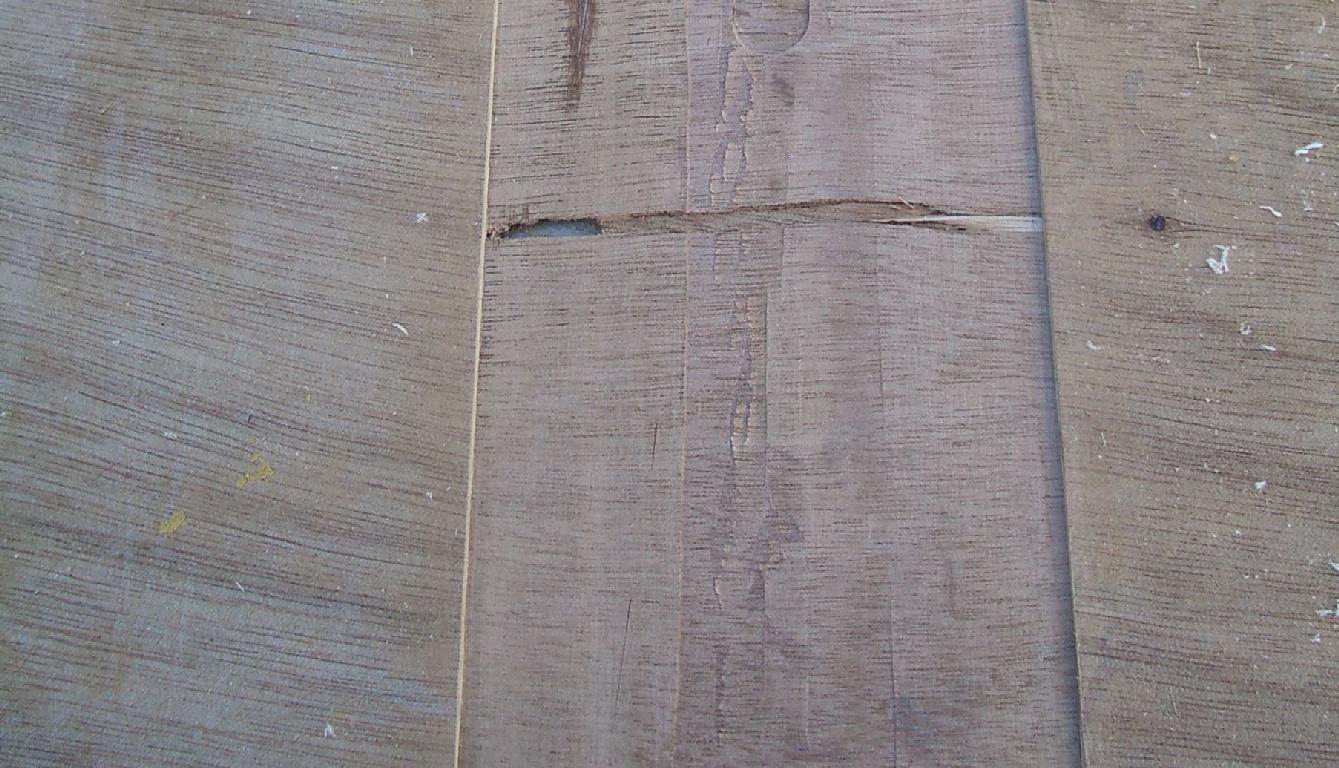

You've asked for some marine ply?:) Expensive, ~$110 AA grade in All Boats, Freo, if remember well. Imported stuff is cheap, and full of voids internally, see:
