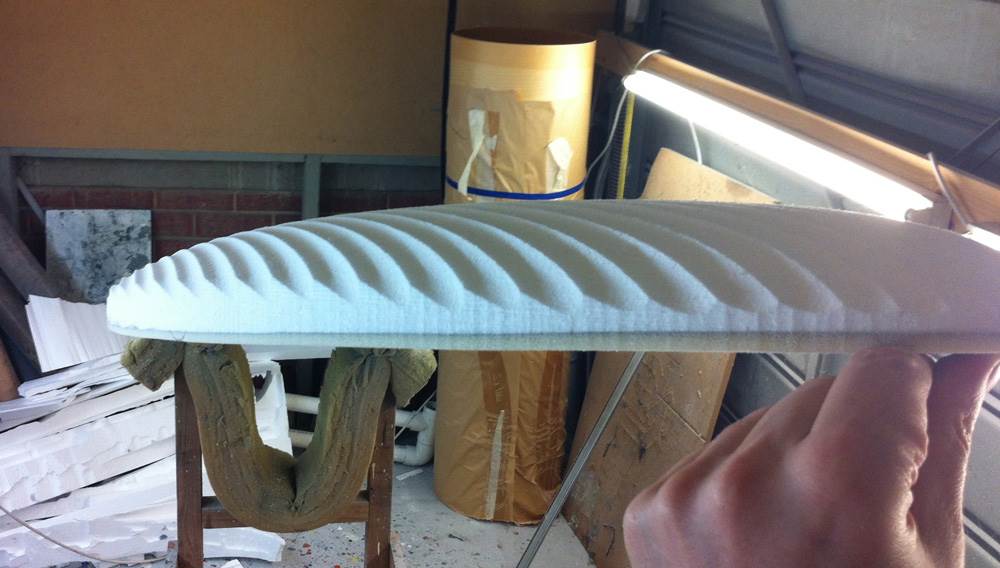

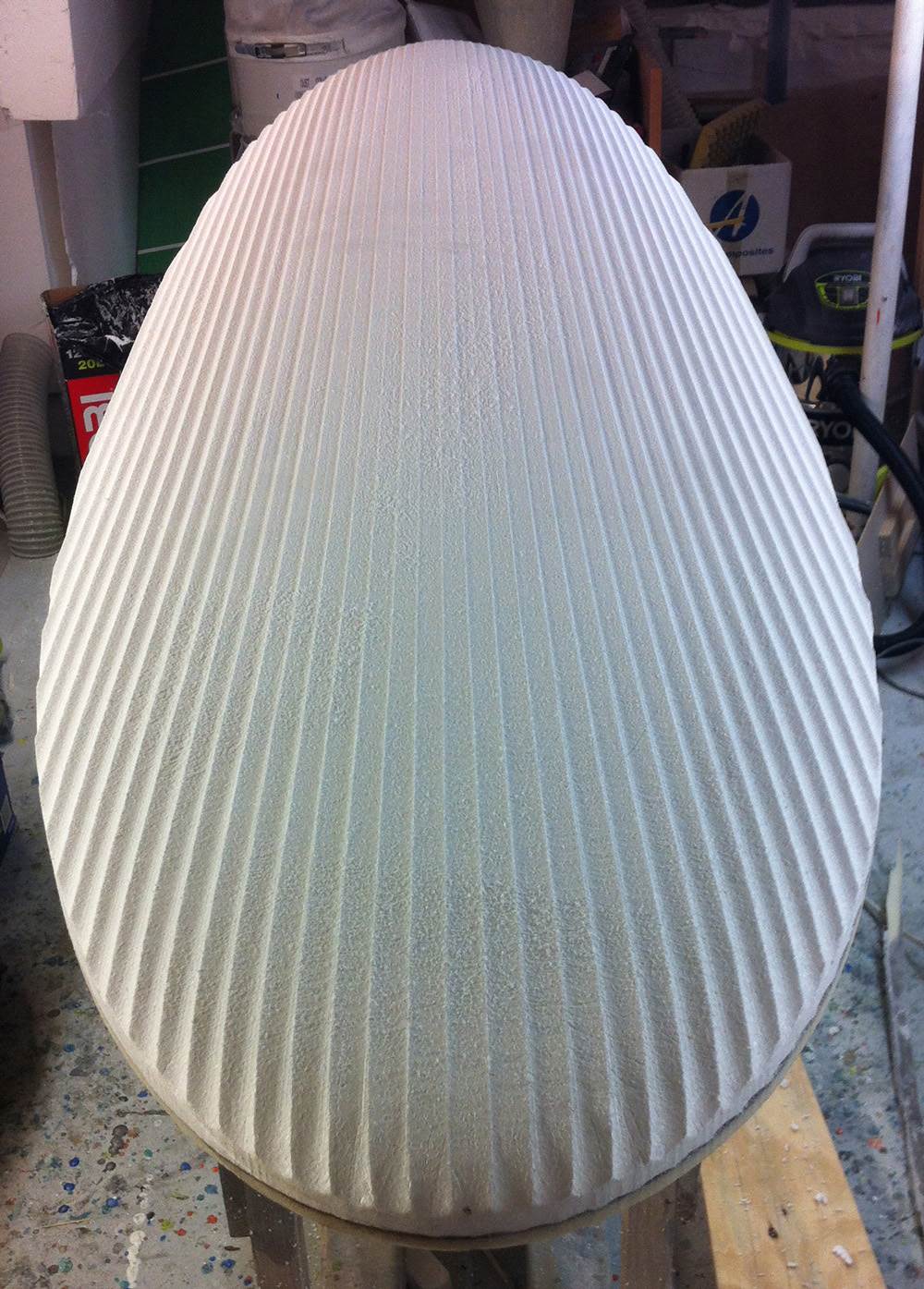

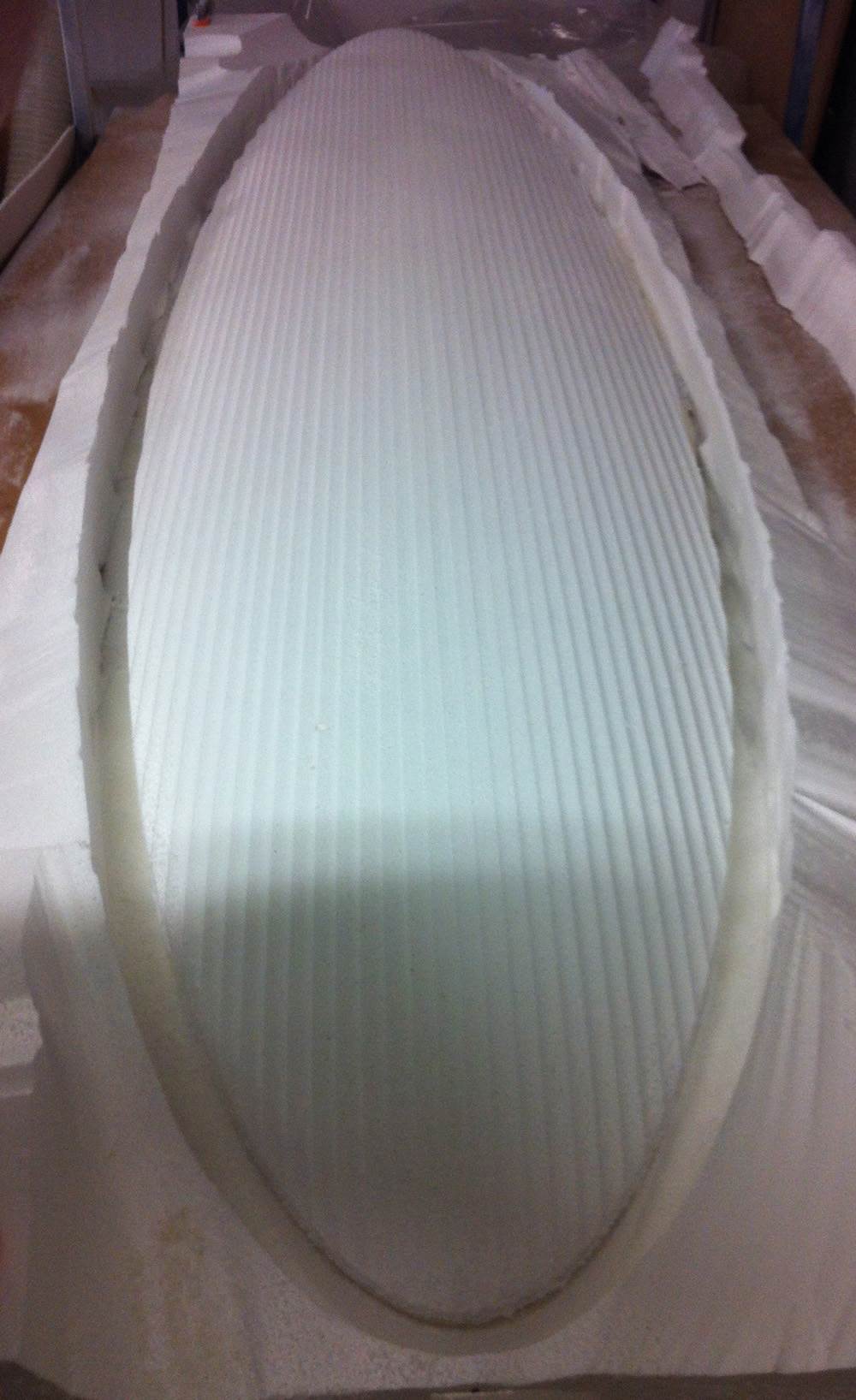

Maritin's new ML Wave 57 fresh of the CNC machine

www.facebook.com/CheekyMonkeyBoards/videos/889959467696400/

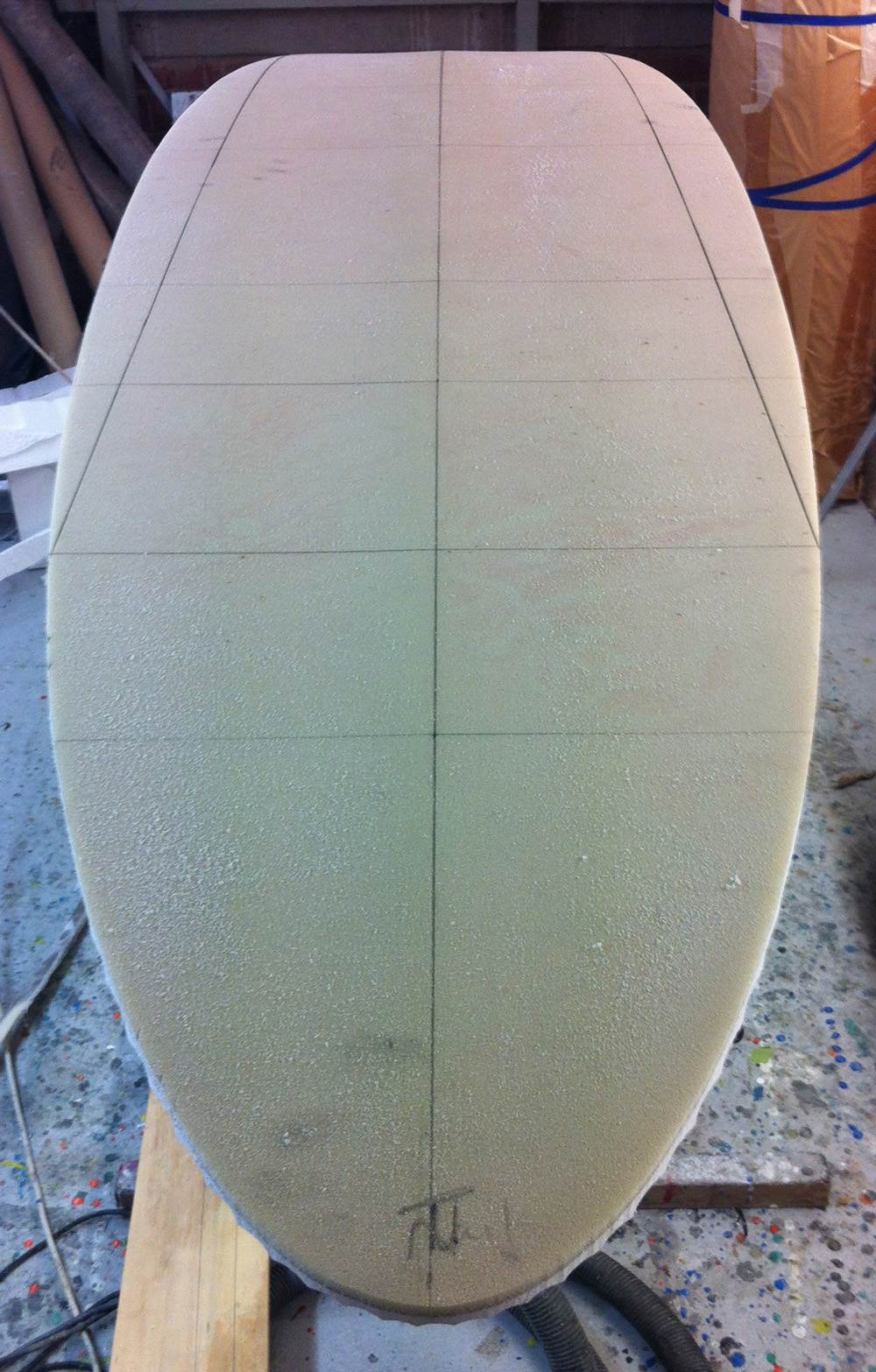

sanded ready for the HD foam

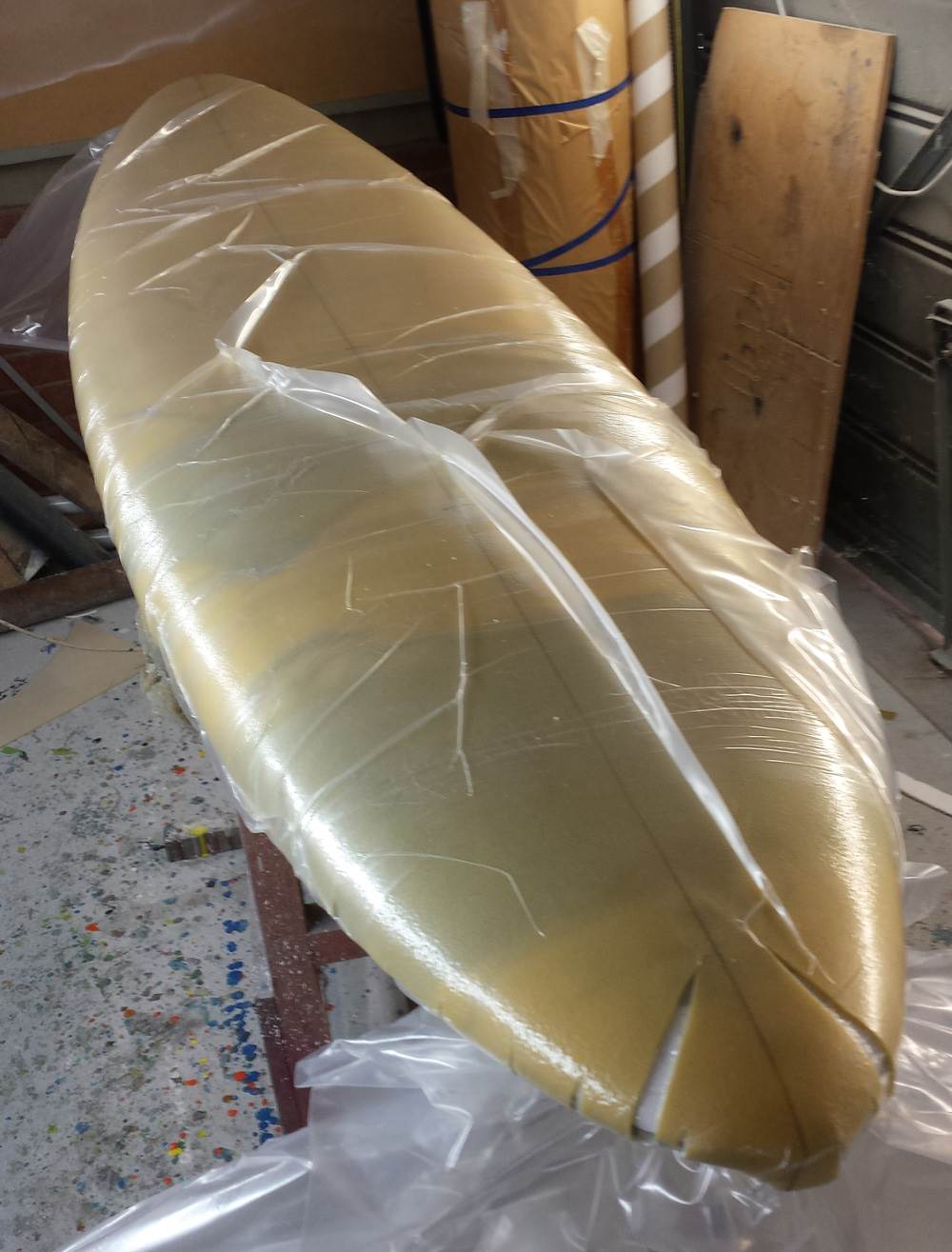

bagging the foam on the board fla on the table

Screen dumps of the file I gave Stuart not that they show much. 236 x 57 x 84.5 liters. Double concave to flat V, spiral V side panels, tri fin. My high wind Wave/ Port Phillip Bay board. Will be great to see the photos as it progresses.

K Dog

VIC

1847 posts

22 Apr 2014 2:21pm

Look forward to hearing how this one goes on the water when you get it.

mr love

VIC

2415 posts

22 Apr 2014 6:08pm

Should be here in time for those crankin Winter Northerlies. Take it for a spin.

dweller

NSW

134 posts

28 Apr 2014 10:32pm

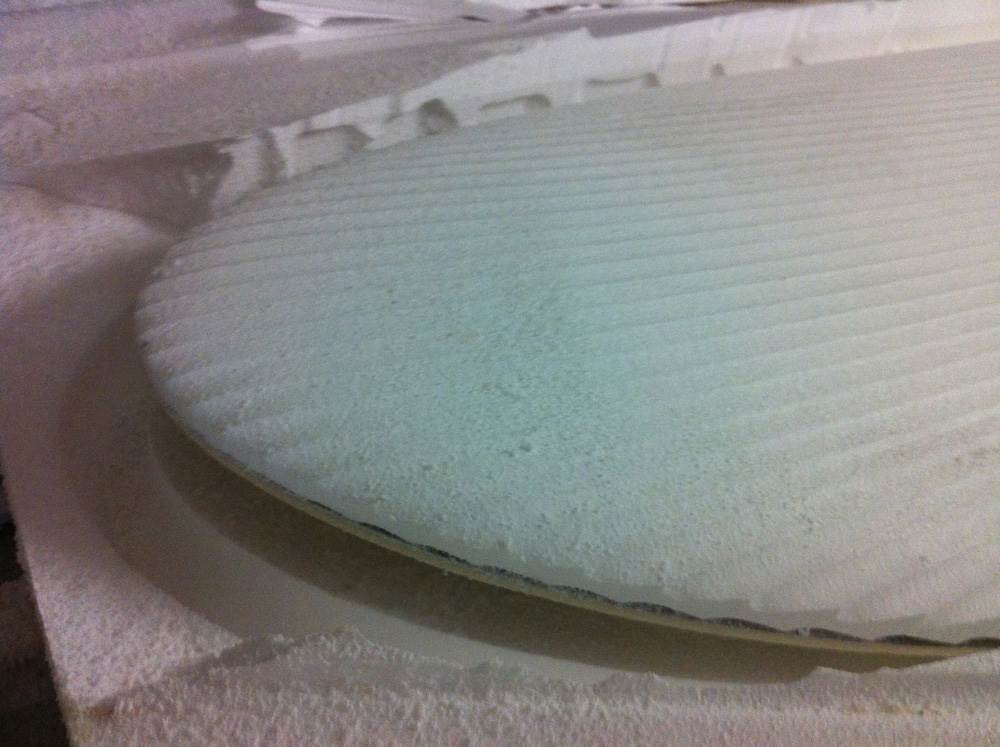

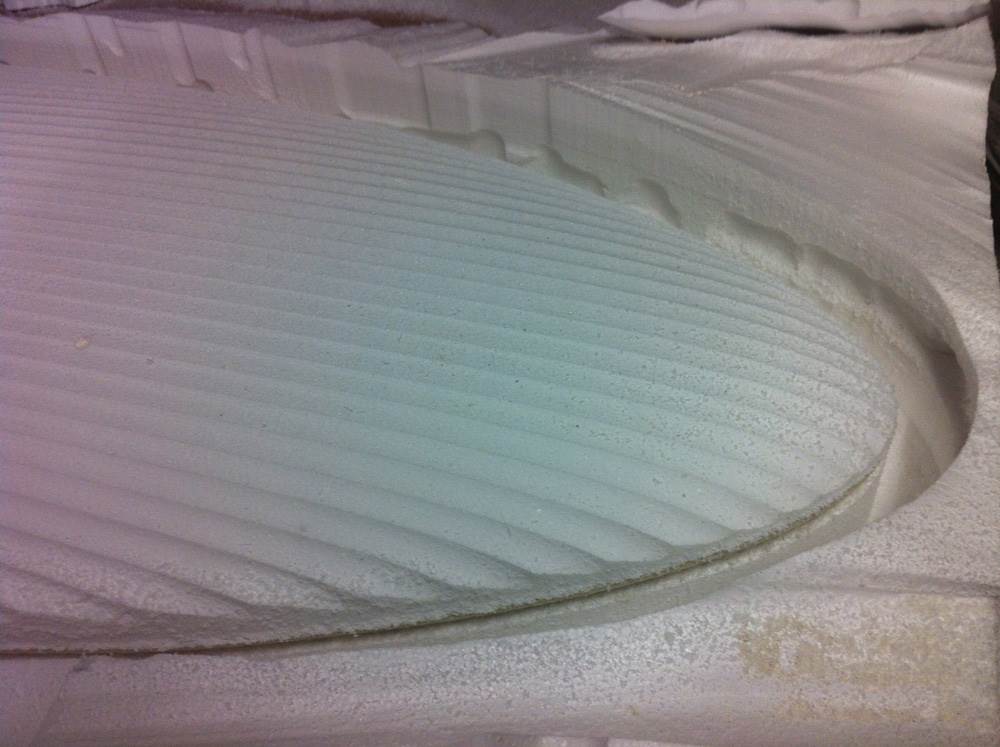

After having to rebuild the cutter motor due to seized bearings I was able to cut the deck and outline of Martin's board

dweller

NSW

134 posts

8 May 2014 8:45pm

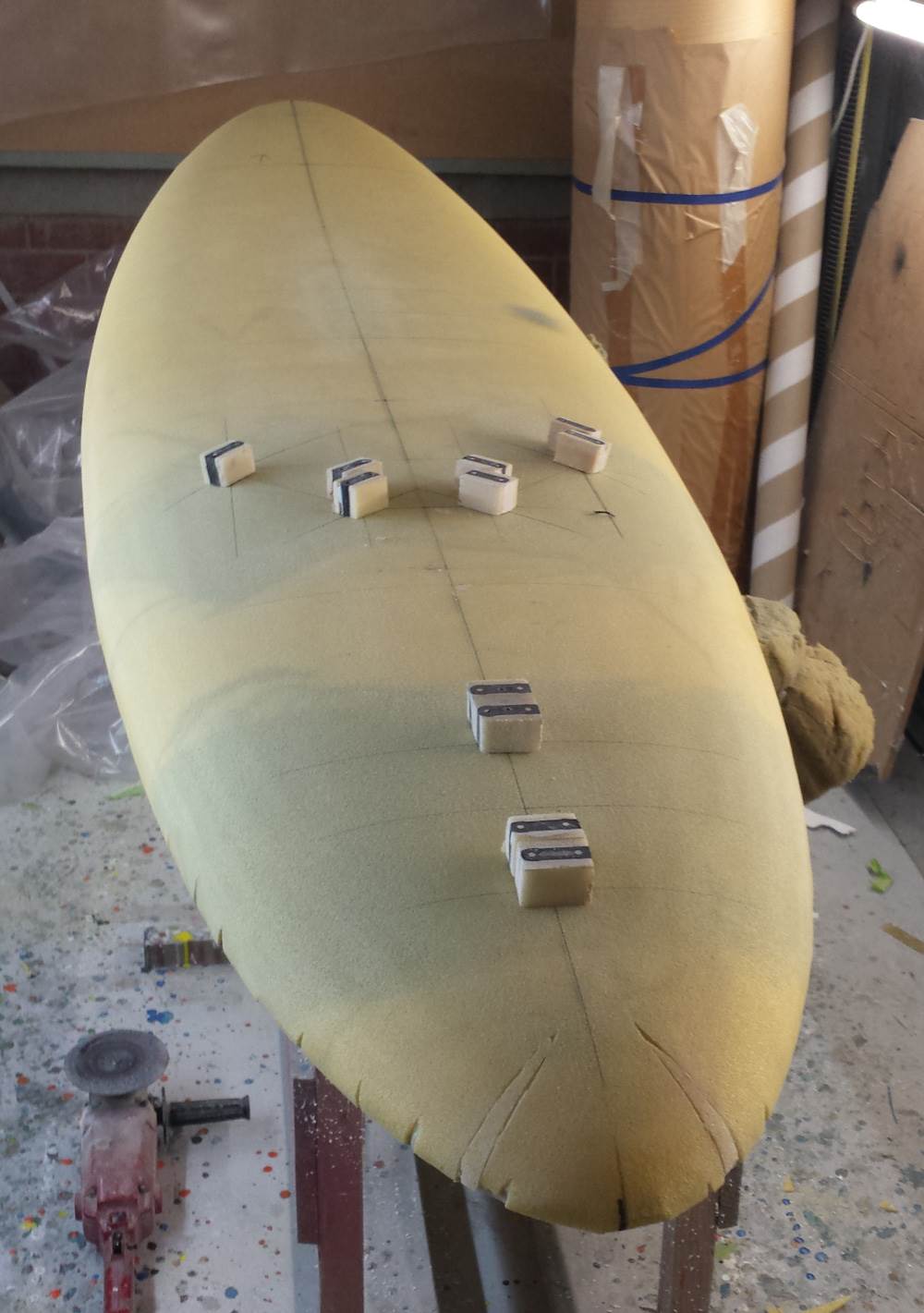

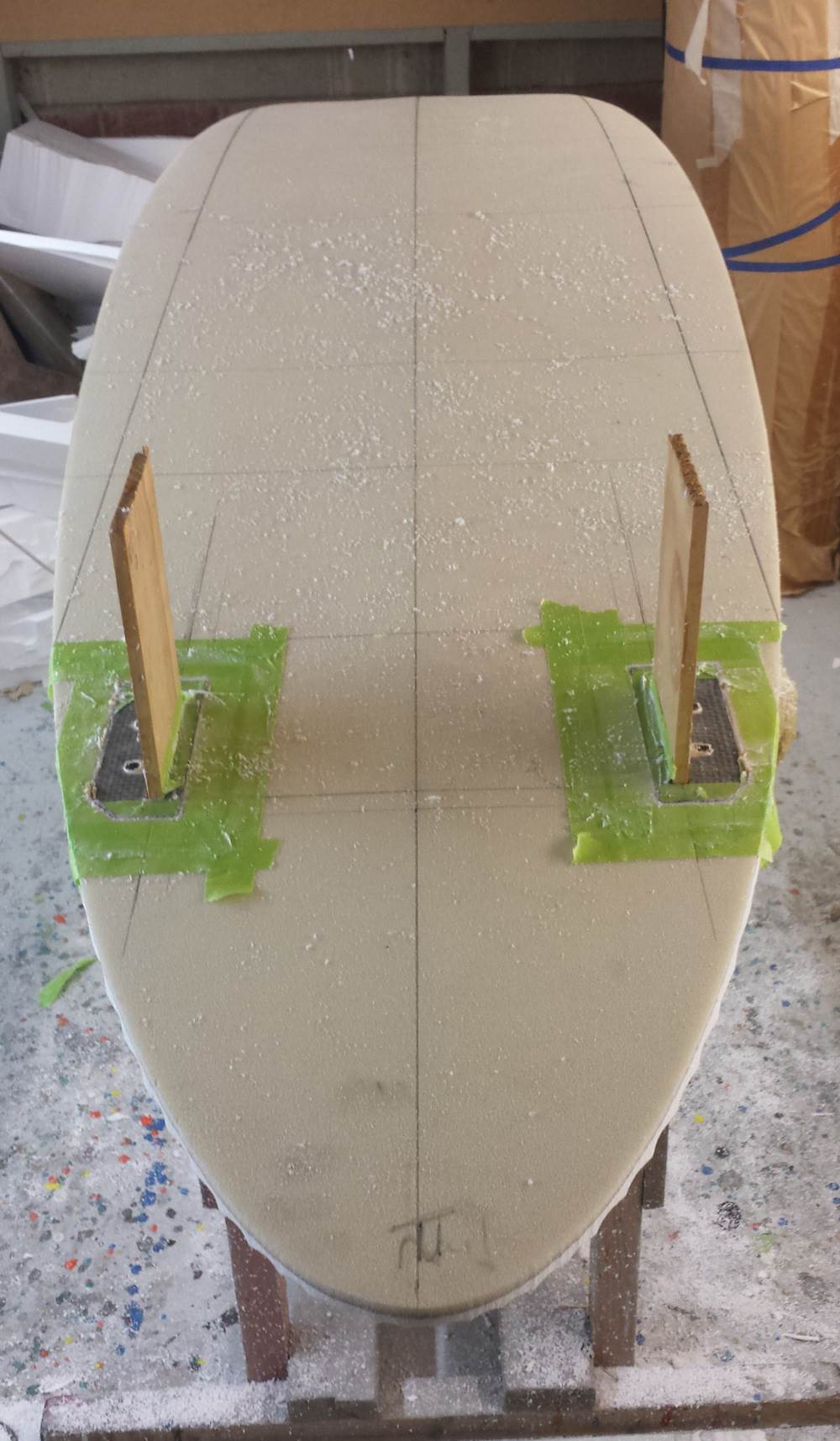

Today the slot boxes arrived from Flikka Boards for Martins board. I will get the two 10cm boxes in and then finish shaping the deck and the heel inlays ready for the deck to go on

dweller

NSW

134 posts

10 May 2014 7:58pm

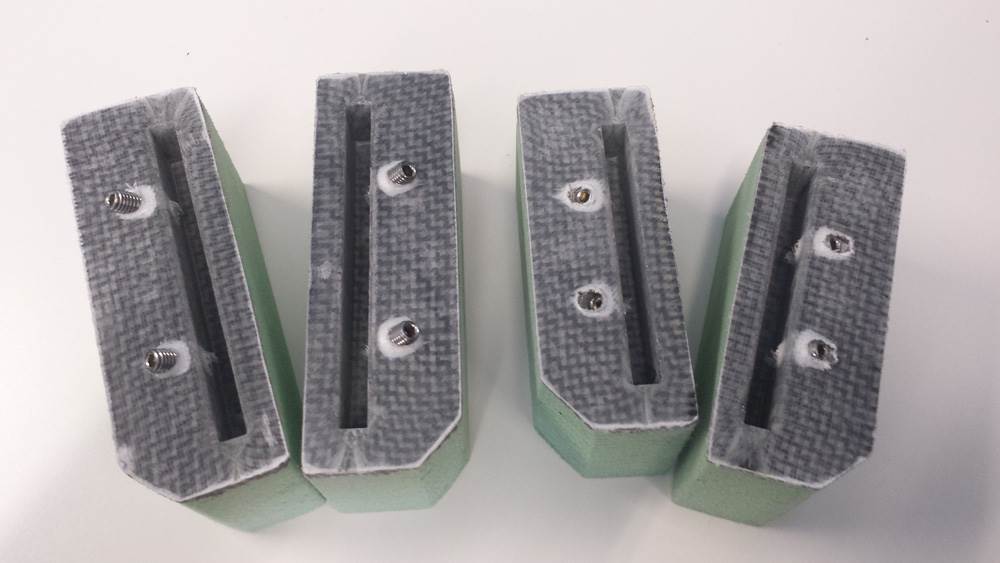

The slots boxes are now in and the finbox block will go in next.

ikw777

QLD

2995 posts

10 May 2014 9:14pm

Select to expand quote

dweller said..

After having to rebuild the cutter motor due to seized bearings I was able to cut the deck and outline of Martin's board

Great shot, this one!

R1DER

1472 posts

10 May 2014 10:18pm

Great thread dweller, great pics. More please

mr love

VIC

2415 posts

11 May 2014 12:23am

Stuart. looks like I need to get off my a.se and do some board graphics soon.

siny

NSW

287 posts

11 May 2014 7:19pm

I think more foil will help those fins

dweller

NSW

134 posts

13 May 2014 8:11am

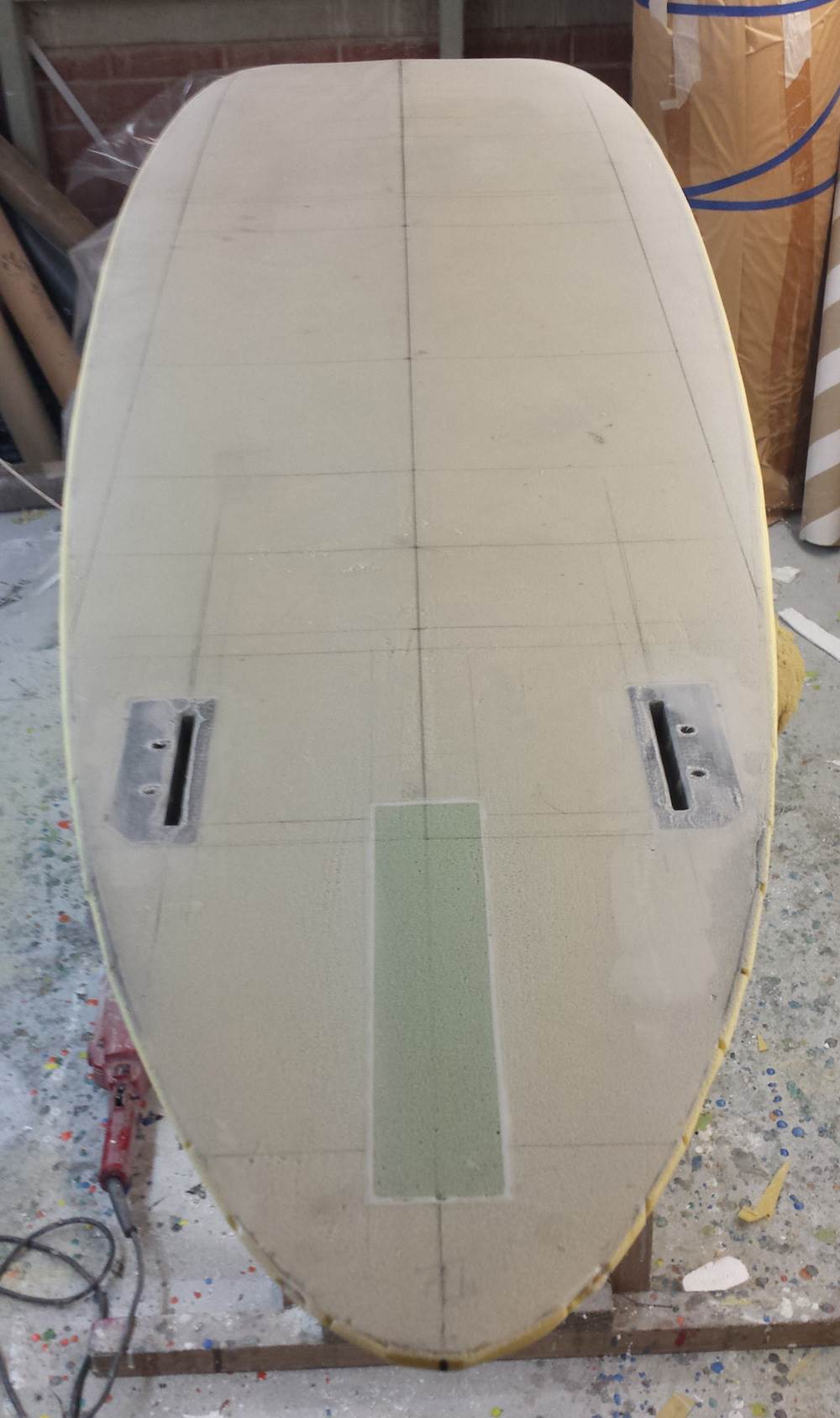

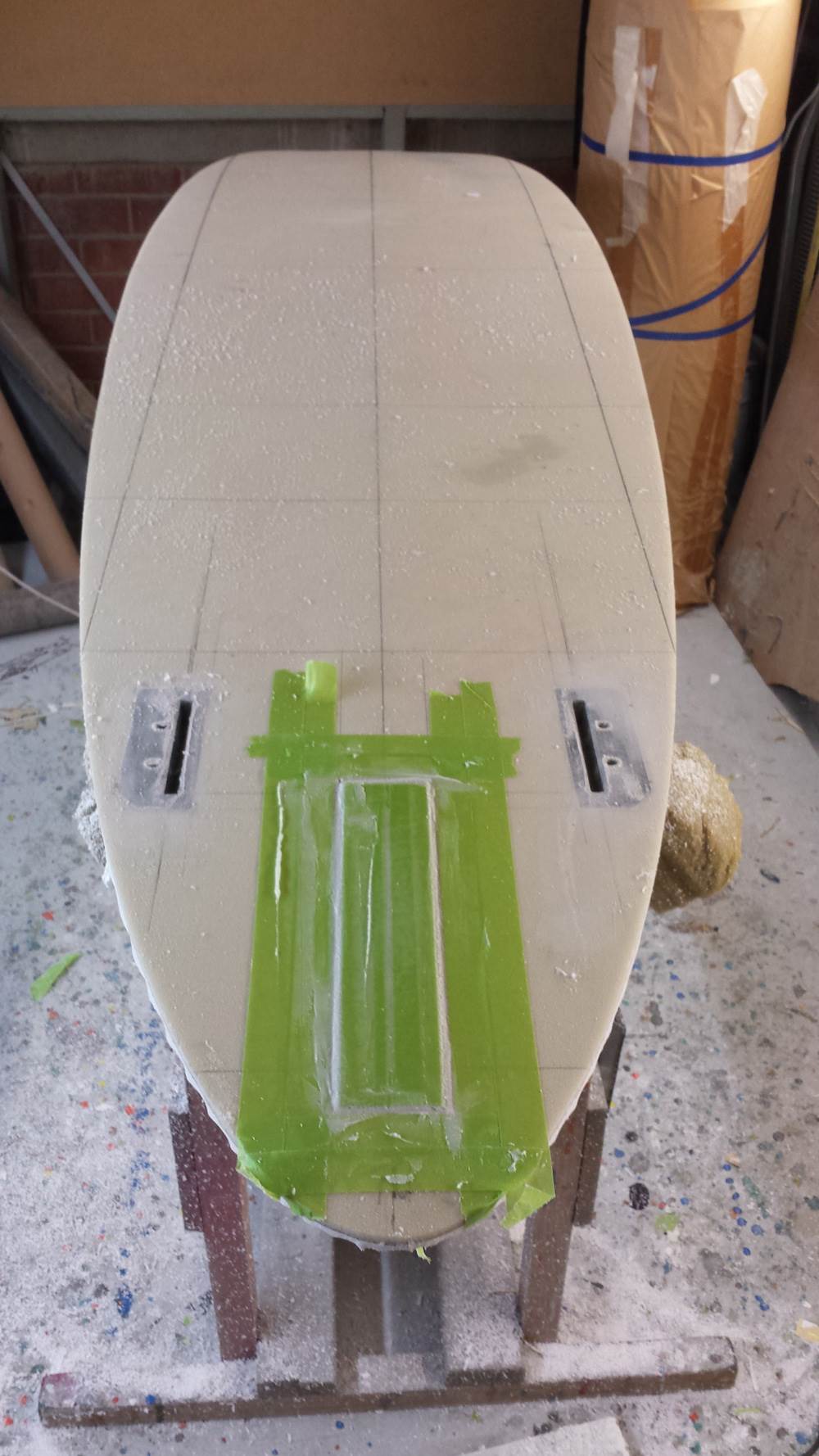

And in goes the HD foam fin box block

R1DER

1472 posts

14 May 2014 9:15am

I thought you got 4 boxes delivered.

mr love

VIC

2415 posts

14 May 2014 5:20pm

Rider, This one for me is a thruster so there is an 8 inch US to go in. I suspect Stuart is up to no good with the other 2 boxes,

dweller

NSW

134 posts

14 May 2014 5:36pm

May be!!!

R1DER

1472 posts

14 May 2014 9:28pm

Select to expand quote

mr love said...
Rider, This one for me is a thruster so there is an 8 inch US to go in. I suspect Stuart is up to no good with the other 2 boxes,

Ah ha thanks, I was thinking quad when I saw all the boxes.

dweller

NSW

134 posts

23 May 2014 8:33pm

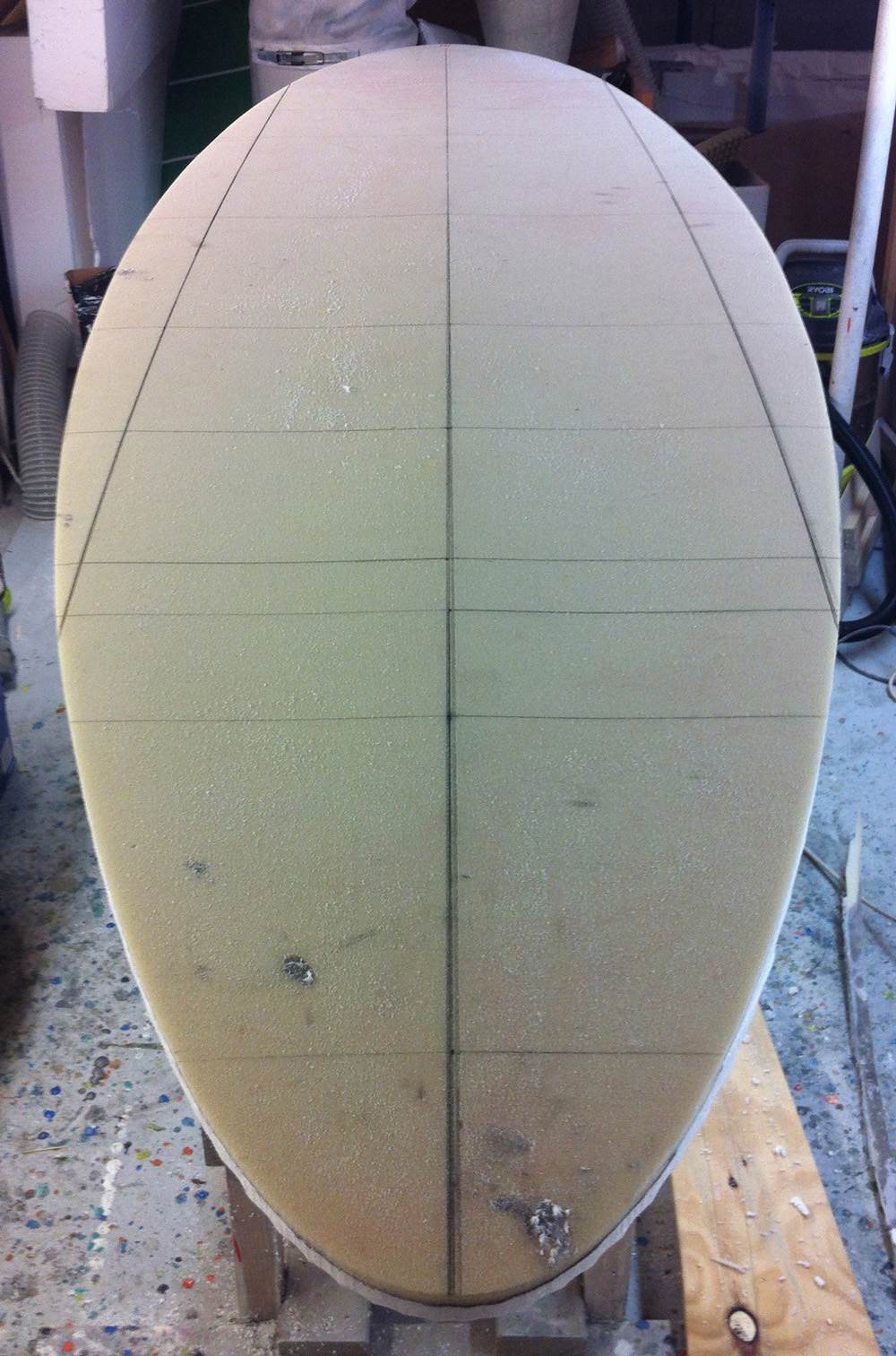

It's been an interesting few weeks. We brought some land down by the beach and then 2 days later told that we had to move out of our rental in Sydney. So moving to coast a year early! Today I finally had time to finish shaping the board and cut out the reinforcements all ready for putting the deck Hd foam on this weekend.

dweller

NSW

134 posts

25 May 2014 3:40pm

Select to expand quote

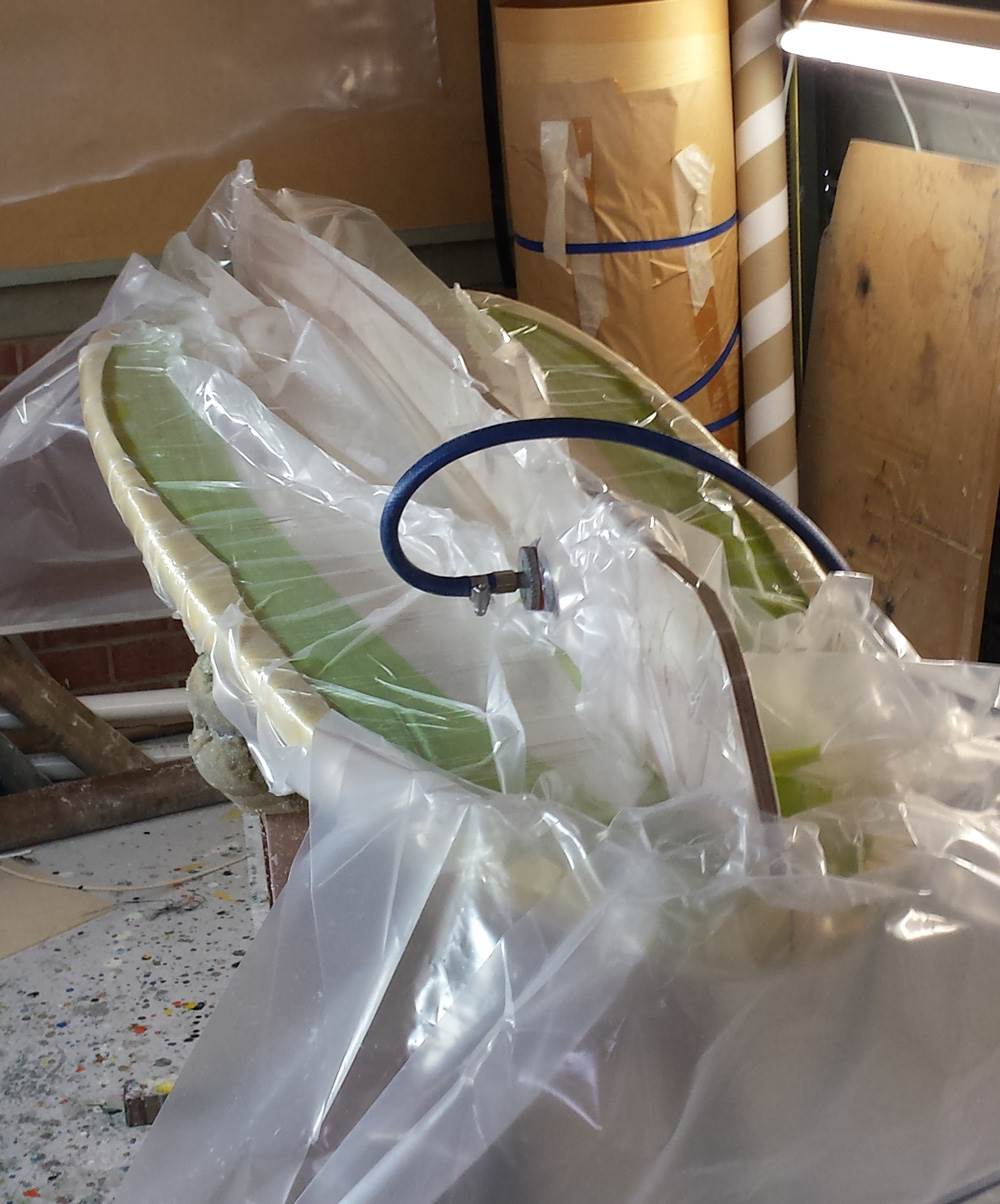

<div class="_5pbx userContent" data-ft="{"tn":"K"}">The top is on and in the vacuum bag having the life sucked out of it!

dweller

NSW

134 posts

28 May 2014 9:33pm

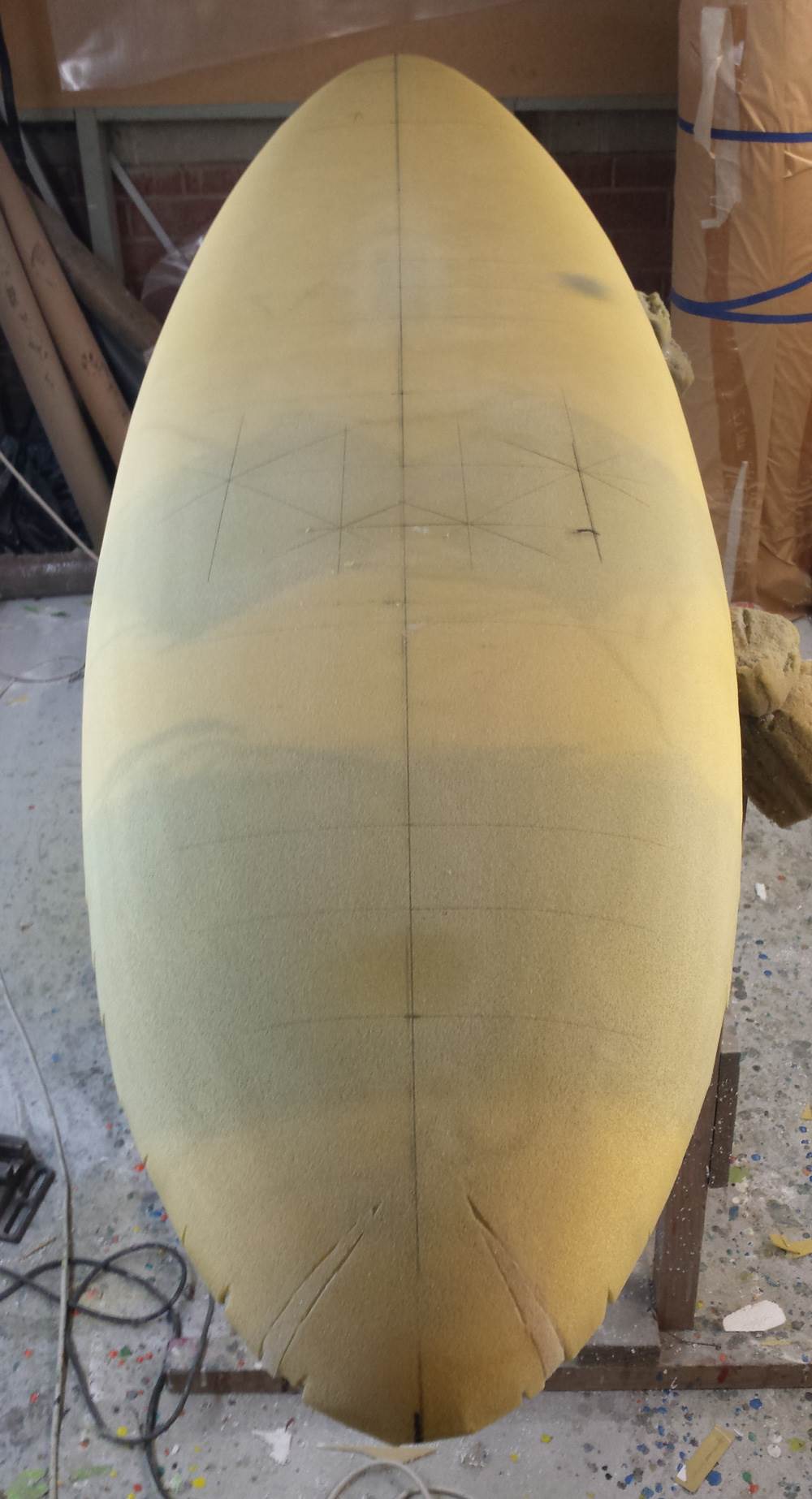

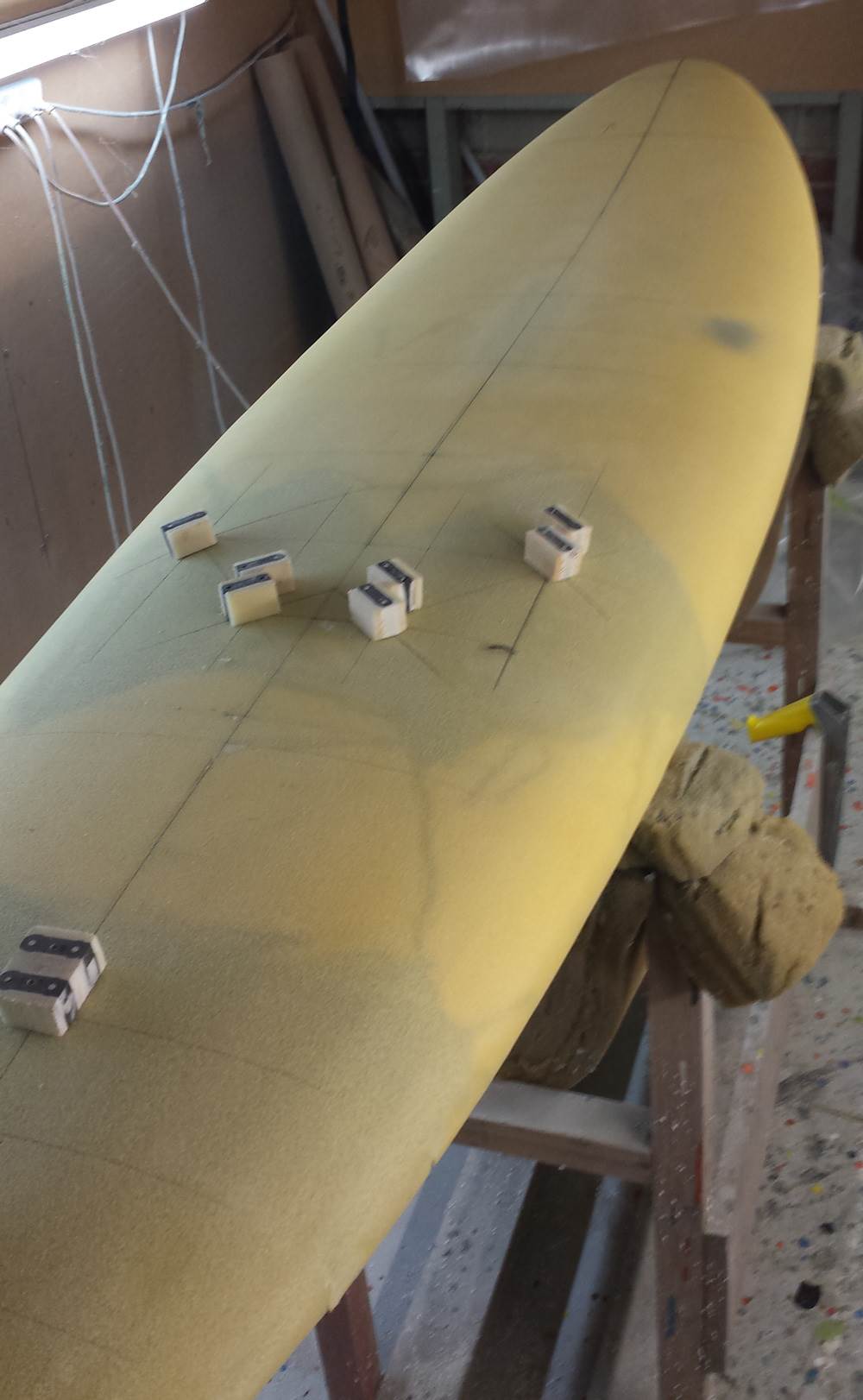

I have now sanded of the excess HD foam off that was wrapped around to the bottom. Marked and squared up the foot strap plugs ready for fitting tomorrow

K Dog

VIC

1847 posts

4 Jun 2014 12:58pm

Interesting to watch the whole process. Cheers.

mr love

VIC

2415 posts

12 Jun 2014 11:54pm

Something easy for Stuart to paint. Bottom just white sanded finish with Stuarts Cheeky Monkey logo

dweller

NSW

134 posts

19 Jun 2014 11:32pm

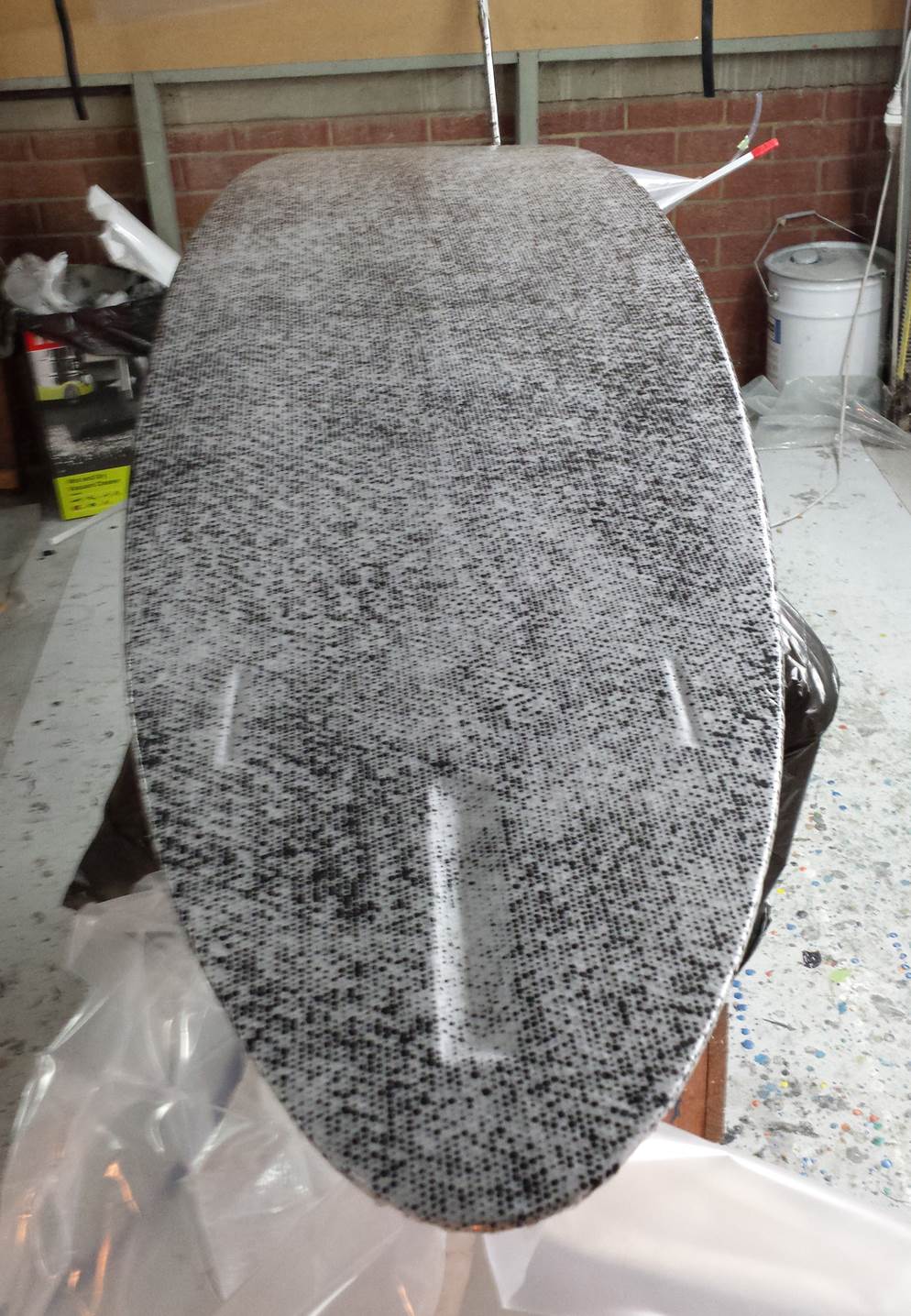

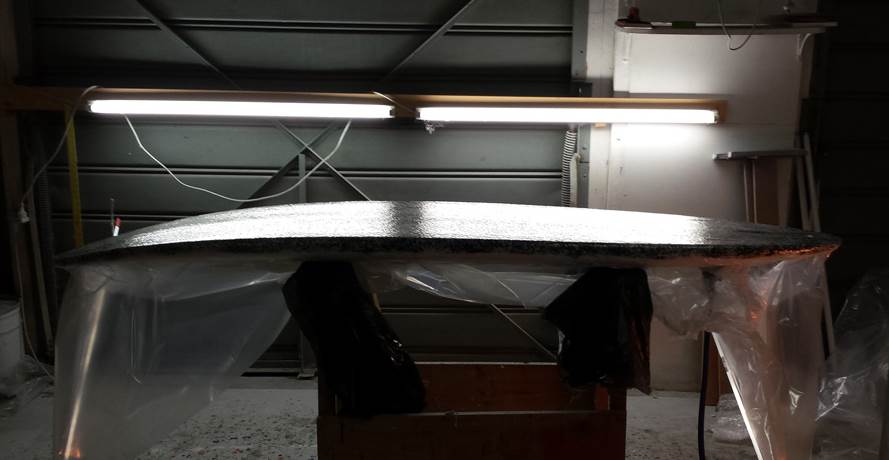

Finishing off Martin's wave board before we move next week. Vacuum bagging the Innegra and s-glass bottom on.

Relapse

VIC

618 posts

20 Jun 2014 2:35pm

Tremendous effort! Looks like you have a great setup there, hope the new place is accommodating.

Thanks for posting the progress, amazing to see what is involved. It sure is helping pass the time down here in chill Melbourne.

mr love

VIC

2415 posts

20 Jun 2014 2:45pm

So Stuart, that is the effect with the black tinted resin and the Inegra after bagging?? looks freaky, cool freaky!!!. I guess you do another black tinted resin hot coat, sand , paint and sand???
I am wondering if you maybe do a clear hot coat so this is the final appearance on the bottom??? Dunno, just thinking aloud in public

hoop

1979 posts

20 Jun 2014 12:57pm

I was thinking the same thing. Does it still have the breather and the peel ply on it in those shots?

R1DER

1472 posts

20 Jun 2014 3:12pm

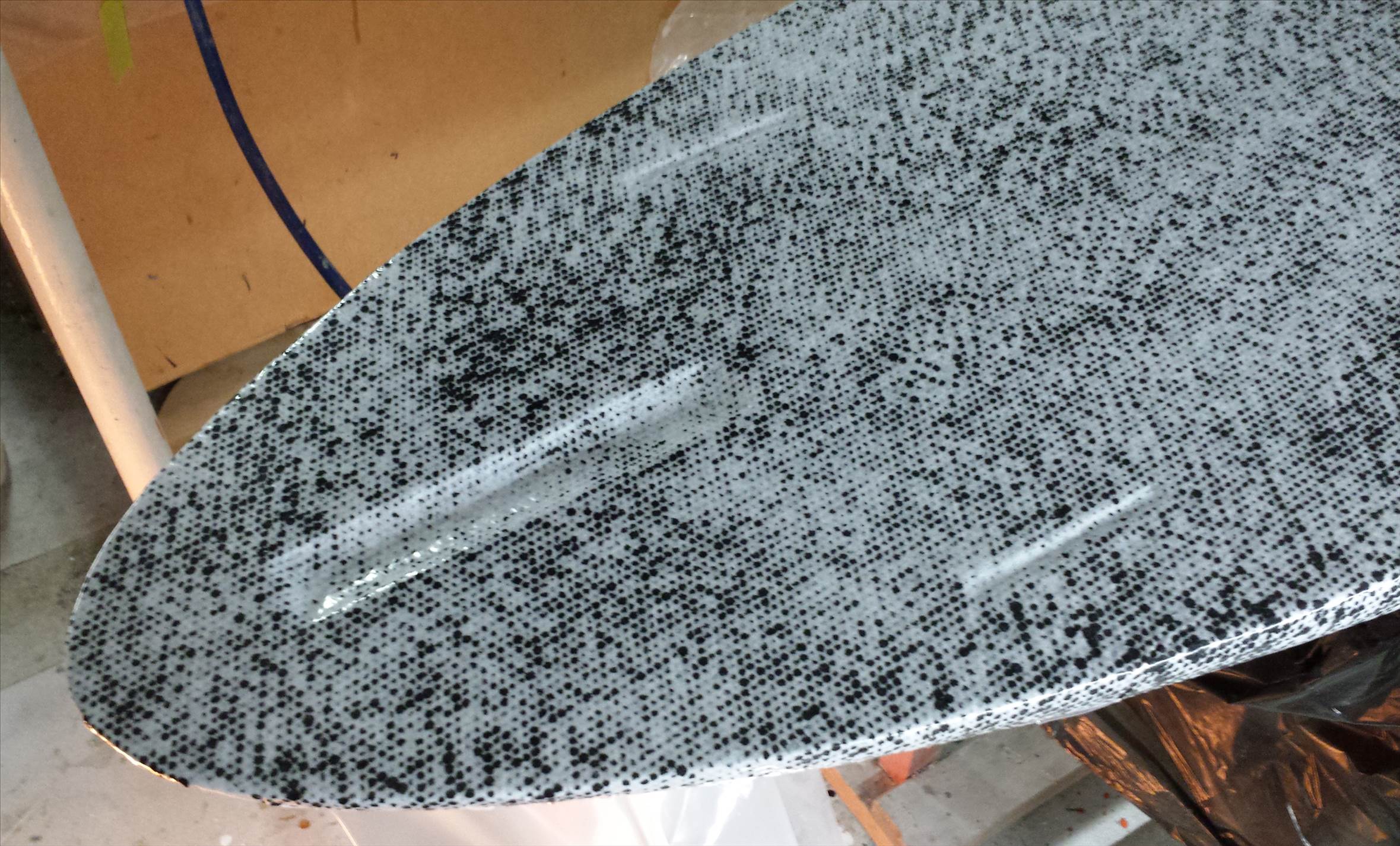

Dittto. Im trying to work out what is the white stuff? And why are there those little hexagon type shapes ?

dweller

NSW

134 posts

20 Jun 2014 8:28pm

Time to put you guys out of your MISERY!

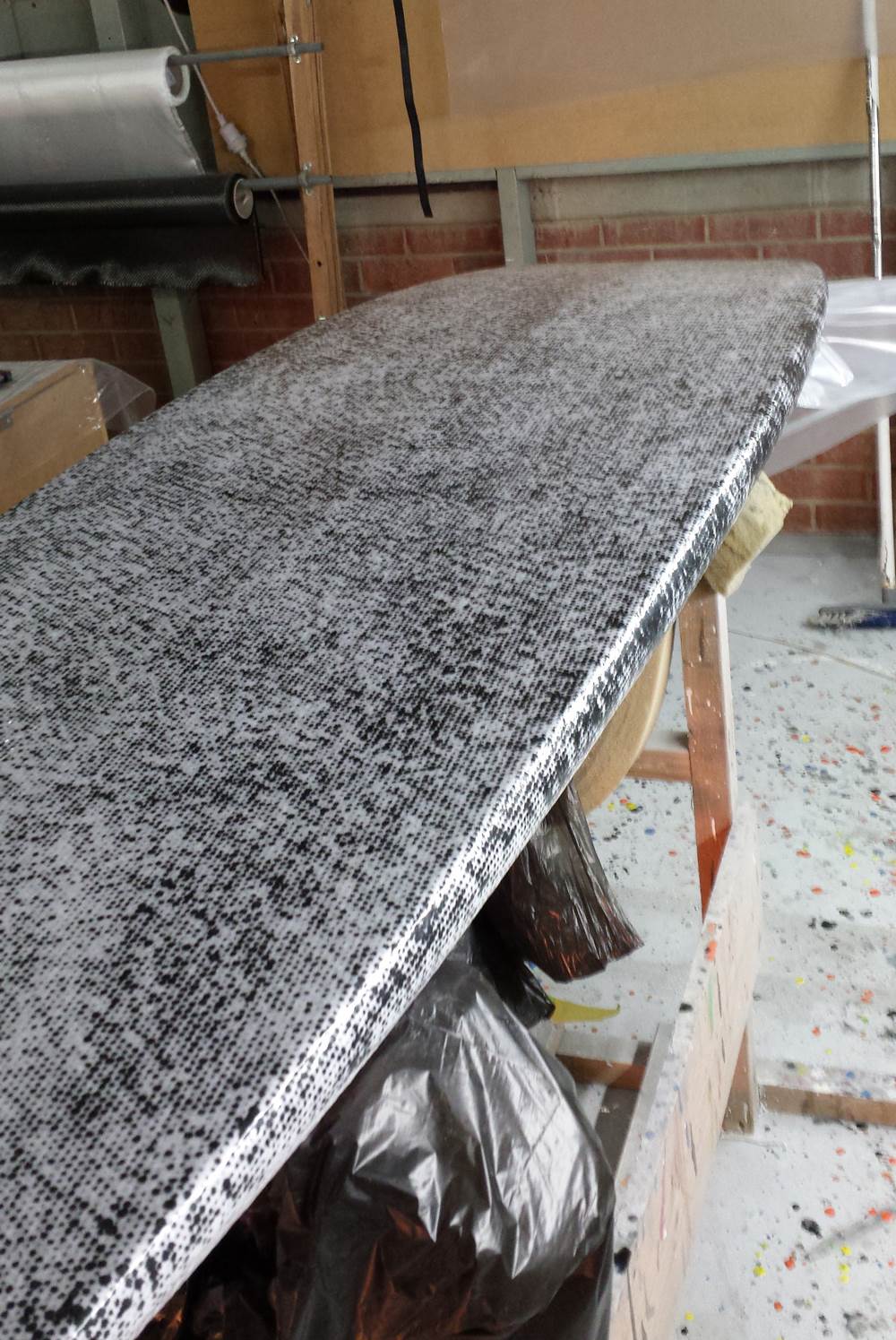

It's the excess black resin coming through into the breather cloth. Here you go with some more pics

mr love

VIC

2415 posts

20 Jun 2014 8:58pm

All is revealed. Back to the original plan Stuart. Looks great by the way, now I just need to lose 10 kgs so I can sail it.

dweller

NSW

134 posts

20 Jun 2014 9:08pm

I lost 12kg with the bird flu! Downside is No sailing for six months!

R1DER

1472 posts

20 Jun 2014 9:39pm

Just saw the above pics on Facebook and worked it out. I've never had that pattern with breather cloth but I've never used breather cloth and black tinted resin together.
Is that orange plastic perforated? The stuff I use it a clear perforated plastic like the plastic french bread sticks come in.

Man0verBoard

629 posts

22 Jun 2014 10:39pm

That orange medium is perforated R1DER. I have some if you want to have a crack with it. I also have another which is peel-ply and breather in one, which is blue. Infusion medium but good for simple bagging of wet layup, too. Let me know if you want to try it
