Spending recently on gear upgrade not much left for new windsurfing rack.

I spent approx $20.
wood from Bunnings $16, some screw $2, glue $2.

One day work, and most just spent thinking how to do it...

one drill , one saw

one holesaw 40mm and one flat bit 35mm

one day drying glue

and ready, 2.4 meter high , 8 shelves / levels every ~25 cm


time to rest..

Nice rack, I'm ready to rest too after swimming my gear 1/2 mile to shore today cuz the wind died on me.

That is brilliant and I particularly like the rounded joint, much easier than chiseling out square holes etc

Did you make those round tenons with the hole saw?

Select to expand quote

NotWal said..
Did you make those round tenons with the hole saw?

yes

Select to expand quote

Macroscien said..

NotWal said..
Did you make those round tenons with the hole saw?

yes

Thats a gold trick! Thanks for sharing that one, brilliant

Nice Falcon!! I didn't know you had one(I guess that was the gear upgrade). Hopefully see you on the water with it soon.
Brilliant rack too!

Nice work Peter. Well done. Very clever with the round holes. Nice board too

Nice board

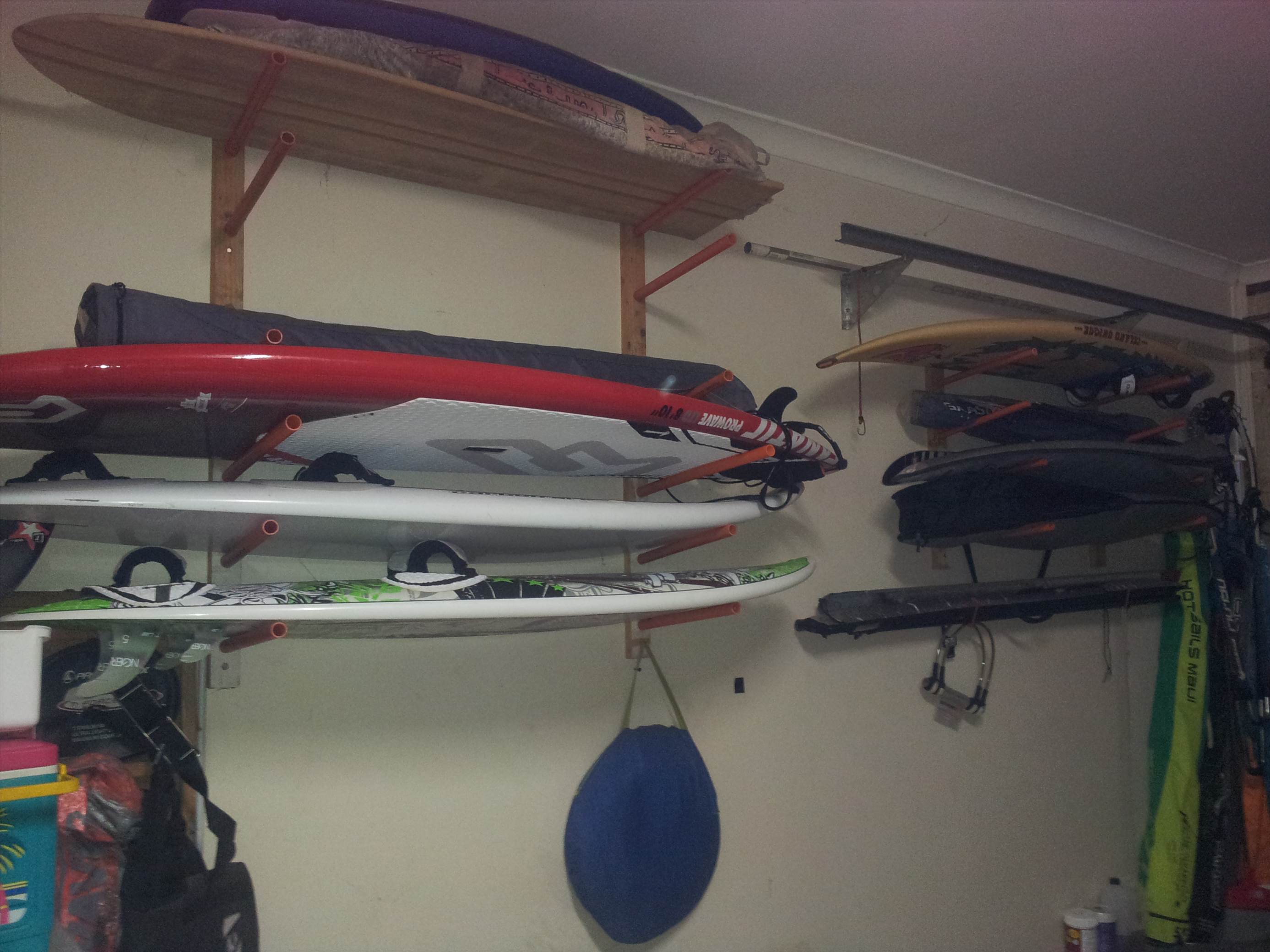

Those look like mine, but I used round closet poles for the horizontals, then I slipped some foam pipe insulation over the poles.
You probably still could over the square stock, you just have to get big pipe insulation, they do make it, and it's cheap.

You know what works really well are swimming pool noodles. Just cut them in half and glue them on those poles you have their. Great soft protection for your equipment to lay on. I hang my board on those noodles with a rope running through them attached to 2 anchore bolts and works perfect. I even use a noodle on my tailgate for my P/U truck to absorb the bumps and to give my board a soft ride when I transport it to the water.

I had a 1998 Porsche Boxster at one point in time, and I ran 2 noodles on the role bar, and put a luggage rack on the back of the car and put a noodle their as well and ran my board right on that. Ran my sails in the passenger seat and boom as well including the masts. It looked so sweet. Gotta lot of lookers with that set up. But I could only run my equipment that way with the top down only. I gotta find some pics of this and post it for you guys.

local guy in Montreal brings his board inside his Tesla !!!

Hi Macro, how long do you make the horizontals?
Guessing about 70cm??

brilliant work macro!!

just need to glue a little bit of carpet to protect the bottom of your boards and voila !

Select to expand quote

Surfinfreak said..
Hi Macro, how long do you make the horizontals?
Guessing about 70cm??

I did 60 cm ( less 4 cm rounded and hidden into hole) , since my wider board is 68 cm, stand a bit outside ,but will not fall.

Yes Sean, Just cutting marine carpet today to glue on top .

Next project is similar rack for sails , but I think this time standing vertically, Say -3 or 4 row for 3 sails each, plus one row for masts.Still thinking how to do bottom shelve support , to drain water from sails (?)Then hanger for booms. All the same round joint concept.

Since a have too many boards, I need to store them on end, like a windsurf shop....upright on the tails.
I need 9'10" of horizontal space to store 13 windsurf boards.
Vertical space needed only the length of the longest board, which is an old 8'10" Mike Zaicheck slalom.
Within the next 9' of the garage, I store 27 sails upright in their bags.
Our garage is 10' high, and 20' deep.

27 sails

Yeah, I use old junky sails most of the time.
Have a '16 Manic and '17 Cosmic, but also use a 1995 Gaastra M-3 which is competitive with any modern 6.0 sail. Oh, compared to '13 Naish 4 cams, '14 Cosmic, and '08 North Warp Slaloms anyways. Best of the litter are '97-98 North Spectros, which are light, fast, huge range, and bend the mast a LOT less than modern sails.

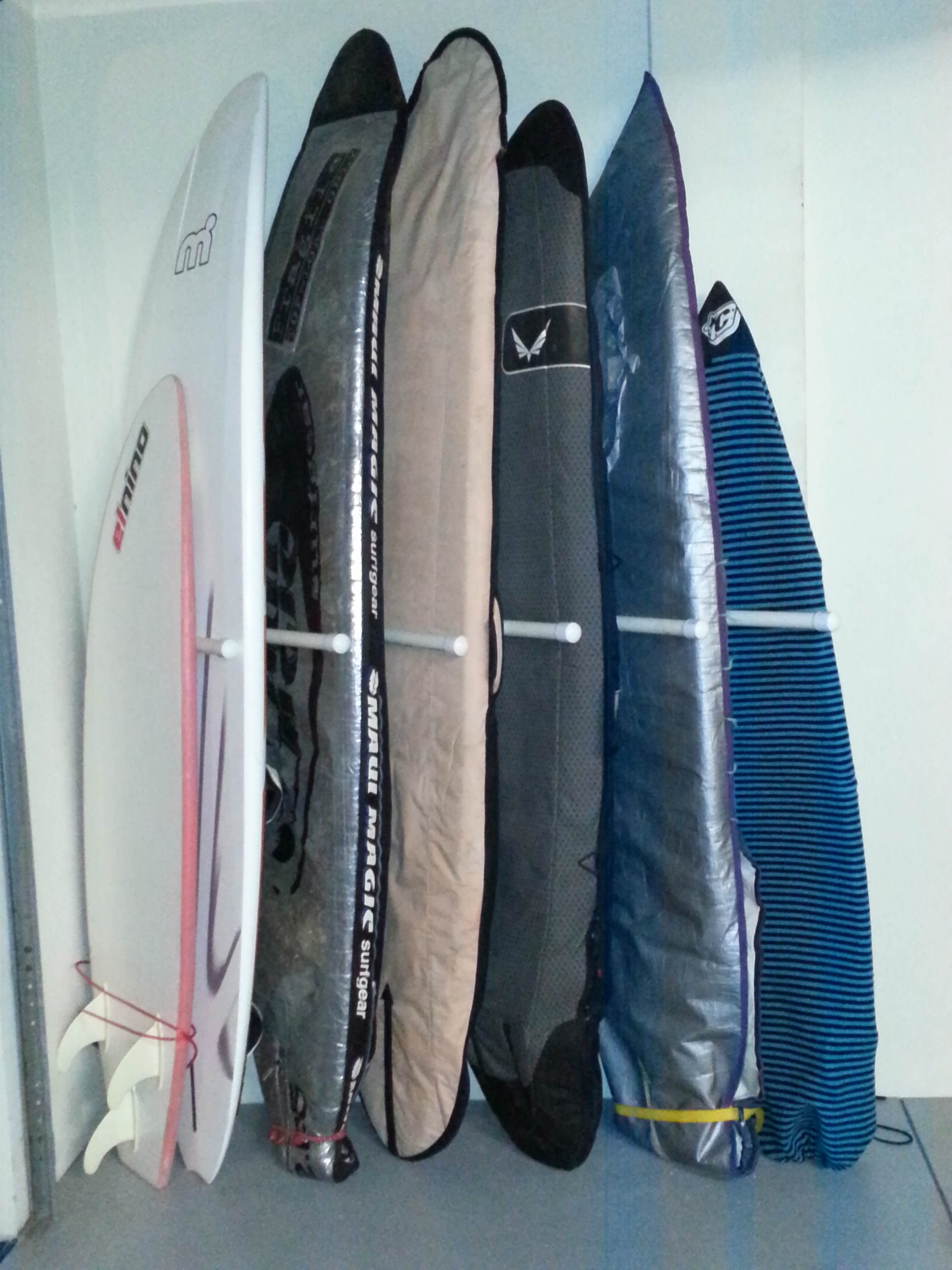

Nice work. I decided to make one out of PVC 25mm retic pipe and fittings screwed to the wall. No screws visible as I hid them inside the 45"T" then pushed the board supports parts on. Looks kind of trick!. I prefer to have the boards vertical for ease of use, also I didn't glue the fittings so I can remove it if I need the space in the garage.

Very nice!

Select to expand quote

mc2 said..

That Alaia <3

Select to expand quote

seanhogan said..
brilliant work macro!!

just need to glue a little bit of carpet to protect the bottom of your boards and voila !

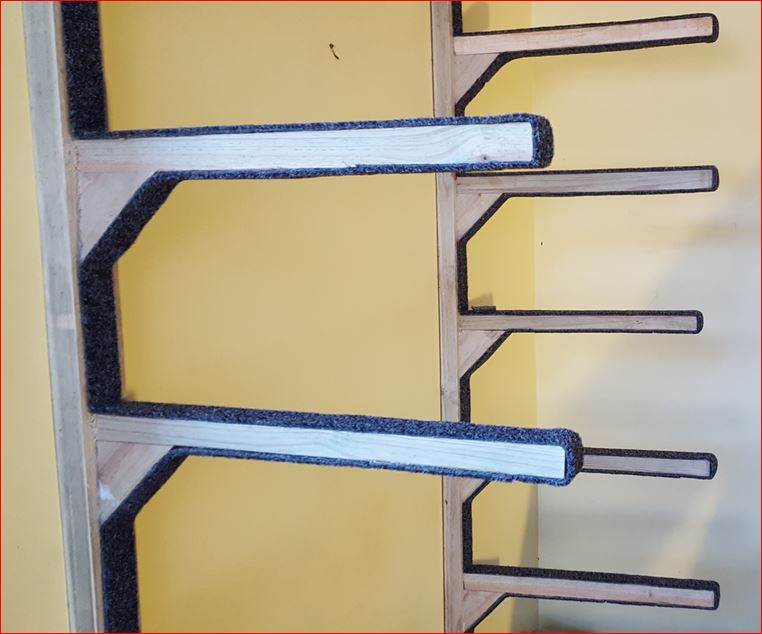

Due to windless weather my wooden rack received now carpet upgrade.Piece of marine carpet , quick grip glue, and maybe an hour work.

hahahah you went full on with carpet !!!! Nice one macro ! at least you won't damage the board if you lift it too high or too quickly !

Select to expand quote

seanhogan said..
hahahah you went full on with carpet !!!! Nice one macro ! at least you won't damage the board if you lift it too high or too quickly !

There is no over engineering . Perfect !

Interesting, thanks for sharing!

Peter,

Are you using the same system in your Merc van?

Select to expand quote

John340 said..
Peter,

Are you using the same system in your Merc van?

no, for van I have even better idea, but no time to start/finish.

Select to expand quote

Macroscien said..

John340 said..
Peter,

Are you using the same system in your Merc van?

no, for van I have even better idea, but no time to start/finish.

Better make time - Summer is coming

Old thread but here's our metal racks







New rack has 9 space old rack has 6. Made out of 50x50&20x20 and old 50x50&30x30 galv steel. Foam to go on the arms. Cost under $300
