Very bad stuck mast

Reply
Created by Boombuster > 9 months ago, 13 Jun 2012
Boombuster
QLD, 584 posts
13 Jun 2012 3:58PM
Thumbs Up

Has anyone had a mast stuck like this?

As you see we didn't get the mast apart down the bay man I have never seen such a stuck mast .

Ended up Dave & I went around Tims Hughes place this morning Tim made up 2 sleeves & we tried prying the mast apart with crow bars we got it apart a bit that way then ended up knocking it apart with a chisel & large hammer end result was good with no damage much to our surprize there was only a very small amount of grit in there all good now goes together good & comes apart.



Mark _australia
WA, 23526 posts
13 Jun 2012 2:02PM
Thumbs Up

Chisel and hammer

I would not be using it too far offshore now, there could be micro cracking all around the ferrule so it's days are numbered.
Lots of booms next time, not shed tools

jamdfingr
QLD, 663 posts
13 Jun 2012 4:10PM
Thumbs Up

I got mine stuck like that. Got some grit in it and couldnt get it off.

took it home in one piece, lashed one end (with 3 self tightening knotts) to a steel pole using a snatch strap and lashed the other end (same setup) to a 2 ton chain block which was attached to a tree.

very slowly loaded up the pressure on the 2 ton chain block (using sufficient damping material (towels) all over the mast and chain) and she slowly popped off.

worked great for another 2 years until I sold the mast.

Dont know how its going now...

jamdfingr
QLD, 663 posts
13 Jun 2012 4:11PM
Thumbs Up

Ha ha... Caption Comp:

How many kitesurfers does it take to rig a sail?

sideskirt
328 posts
13 Jun 2012 2:16PM
Thumbs Up

I found out that attaching booms to each end and rotating them along with pulling apart makes it a very easy deal, as Mark already suggested.

Boombuster
QLD, 584 posts
13 Jun 2012 4:24PM
Thumbs Up

Yer we tried the booms but didn't work we also tied hot water on the out peice but wouldnt work either.

da vecta
QLD, 2515 posts
13 Jun 2012 4:53PM
Thumbs Up

Ekkie once got a mast apart with me by bending it one way to expose a tiny gap then put a thin blade or coin in the gap then bend it the opposite side and then put a slightly wider coin in the other side. Then bend it the other way and so on and on. It worked a treat. But that was a long time ago. Can you do that with modern masts I don't know but can't see why not.


...you would need some stronger guys to bend it than those wimps though.

Wineman
NSW, 1412 posts
13 Jun 2012 5:08PM
Thumbs Up

da vecta said...

Ekkie once got a mast apart with me by bending it one way to expose a tiny gap then put a thin blade or coin in the gap then bend it the opposite side and then put a slightly wider coin in the other side. Then bend it the other way and so on and on. It worked a treat.


That's how I opened the replacement spring for the garage door

Takes a lot of tension to open up to fit

Boombuster
QLD, 584 posts
13 Jun 2012 5:16PM
Thumbs Up

Well we had Pierre helping but he didnt help much & he wore out quick.

jermaldan
VIC, 1572 posts
13 Jun 2012 5:48PM
Thumbs Up

Yep. Did this and took it to the store. They could not get it apart so Severne replaced it with a new one under warrantee.

Gwendy
SA, 472 posts
13 Jun 2012 5:28PM
Thumbs Up

my mast is a fairly tight fit and gets stuck more often than not. Spent a lot of one summer as a one piece. 4 booms wouldn't budge it.

I've had to many long swims from broken masts over the years to resort to WMD's.(chain blocks, hammers, chisels, Sh!t like that.) One day I tried directing a jet of water from the hose straight into the joint while wiggling the mast about. couple of minutes of this and it came apart easily by hand. Thing still gets seized, this works every time.

jamdfingr said...

Ha ha... Caption Comp:

How many kitesurfers does it take to rig a sail?


For the guys who can do both,... Just one.

I asked a young kiter with me now and he said "How many polies does it take to build a wooden wagon wheel? Who gives a f*#k".

You asked.

evilC
QLD, 681 posts
13 Jun 2012 6:03PM
Thumbs Up

More importantly, who won the tug-of-war?


boardboy
QLD, 554 posts
13 Jun 2012 6:56PM
Thumbs Up

one hand on each side of the join and then twist - works every time

Richiefish
QLD, 5612 posts
13 Jun 2012 7:10PM
Thumbs Up

Mark _australia said...

Chisel and hammer

I would not be using it too far offshore now, there could be micro cracking all around the ferrule so it's days are numbered.
Lots of booms next time, not shed tools


How many booms ? at one stage we had three booms and eight guys on that thing.

Mark _australia
WA, 23526 posts
13 Jun 2012 8:22PM
Thumbs Up

Richiefish said...

Mark _australia said...

Chisel and hammer

I would not be using it too far offshore now, there could be micro cracking all around the ferrule so it's days are numbered.
Lots of booms next time, not shed tools


How many booms ? at one stage we had three booms and eight guys on that thing.


I assumed he had not, as the post didn't say the other methods tried. So sorry....

But I'd rather have a one piece, than a 2 piece that has a possibly weakened ferrule area.

I still can't believe 3 booms per side, with a non slip between boom and mast, plus warming or cooling the joint, plus some bouncing, can't get a mast apart. Never seen it.
Now we have a couple in a short space of time.
Are manufacturers making them with less clearance all of a sudden? I reckon given the last 2 examples I'd check and hand fit before using a new mast now. If I could afford a new one

barn
WA, 2960 posts
13 Jun 2012 9:35PM
Thumbs Up

Mark _australia said...



I still can't believe 3 booms per side, with a non slip between boom and mast, plus warming or cooling the joint, plus some bouncing, can't get a mast apart. Never seen it.


More bouncing and more booms. Water to cool it down as they come apart.

Somebody needs to measure the maximum torque that one quality* boom applies compared to one Clown twisting by hand.

Anybody with a torque wrench could set up a quick jig and report back?

I'm guessing one boom beats 8 blokes.


*must not slip and ignoring any damage.

Mark _australia
WA, 23526 posts
13 Jun 2012 10:03PM
Thumbs Up

about 50 inch pounds vs 500 ft lbs

(to use the current vernacular)

in metric - a big fkn difference.

Retzy
VIC, 130 posts
16 Jun 2012 9:32PM
Thumbs Up

Ha ha, in the first week of november we call that the "sandy point shuffle", somebody (usually more than 1) always jams their mast :)

qldnacra
QLD, 455 posts
17 Jun 2012 9:31AM
Thumbs Up

Why don't people make sure the ferrule is clean and tape the mast join before rigging? I use 50mm duct tape and never get any sand or grit in the mast. It takes all of about 2 seconds to do and has to reduce the chances of this happening

thommo72
SA, 82 posts
17 Jun 2012 3:11PM
Thumbs Up

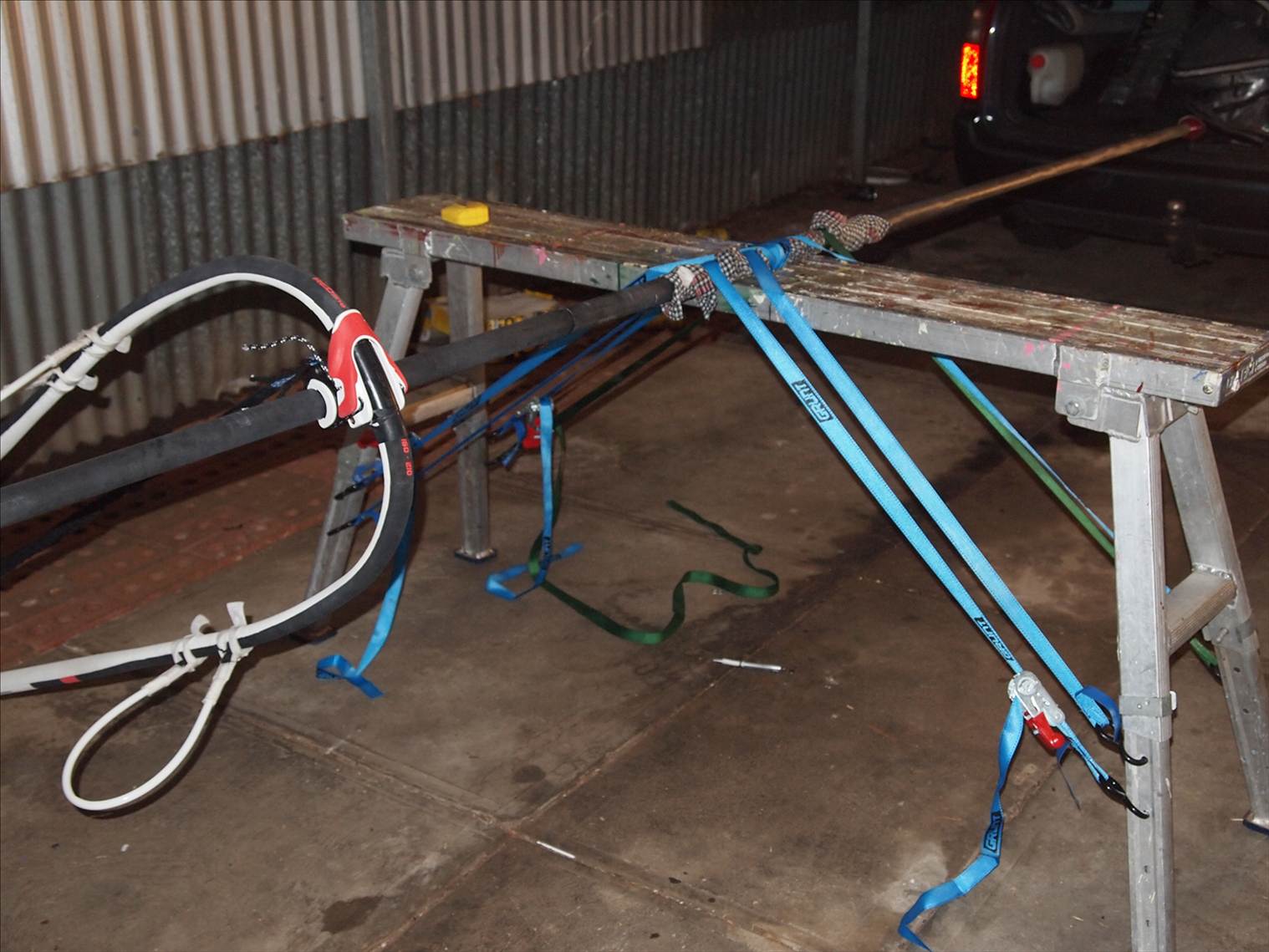

I managed to get one a apart using this contraption. The wet tea towel provided greater grip. I rotated one half of the mast with the boom and gradually increased the hold of the other half by tensioning the straps as required.






felixdcat
WA, 3519 posts
18 Jun 2012 3:51PM
Thumbs Up

Baah don't worry in the 70's we only had one piece masts.................

jamdfingr
QLD, 663 posts
18 Jun 2012 6:29PM
Thumbs Up

Next step: telescopic masts!

qldnacra
QLD, 455 posts
19 Jun 2012 12:50PM
Thumbs Up

jamdfingr said...

Next step: telescopic masts!


And i'm sure you could pull heaps of downhaul tension on a telescopic mast.

Jeffrosail
QLD, 169 posts
19 Jun 2012 3:43PM
Thumbs Up

I suspect masts (with a grain(s) of sand) are the same as 2 white 20L buckets that are stuck together. You have to "break the seal" in the join to get them apart easily.
I had a mast stuck like this & it was really stuck.
A mate of mine put it under the water in the lake we were sailing in (about 30cm deep). I stood on the narrow (top) end. He had the bottom end and shook the mast up and down vigorously and pulled on it every so often as he shook.
We had it apart in about 1 minute with very little effort.
I was gobsmacked (I tape the join every time now and have never had it stuck since).
He commented that he had seen 4 people on each end of a mast and they still didn't get it apart.
Da vecta's method is similar in his post 6 from the top of this topic.
Try it next time and you will be surprised how easy it is.

jamdfingr
QLD, 663 posts
19 Jun 2012 6:21PM
Thumbs Up

qldnacra said...

jamdfingr said...

Next step: telescopic masts!


And i'm sure you could pull heaps of downhaul tension on a telescopic mast.


There would be clickers... Or a small battery controlling an actuator for each section or....

Shut up ok?, it's in the future and I didn't say I was going to design it?

Maybe foot long sections that stack.... Untill you get sand in the join.... Damn it!

Back to the drawing board!

Mark _australia
WA, 23526 posts
19 Jun 2012 7:41PM
Thumbs Up

qldnacra said...

jamdfingr said...

Next step: telescopic masts!


And i'm sure you could pull heaps of downhaul tension on a telescopic mast.


Just make it extend the other way, then the downhaul can't collapse it.






P.C_simpson
WA, 1492 posts
19 Jun 2012 9:15PM
Thumbs Up

Select to expand quote
barn said...

I still can't believe 3 booms per side, with a non slip between boom and mast, plus warming or cooling the joint, plus some bouncing, can't get a mast apart. Never seen it.


More bouncing and more booms. Water to cool it down as they come apart.

Somebody needs to measure the maximum torque that one quality* boom applies compared to one Clown twisting by hand.

Anybody with a torque wrench could set up a quick jig and report back?

I'm guessing one boom beats 8 blokes.


*must not slip and ignoring any damage.


Our olive oil trick works well too..
