Broken shaft repair

> 10 years ago
Reply
Register to post, see what you've read, and subscribe to topics.
latman
latman
QLD
177 posts
QLD, 177 posts
20 Aug 2015 5:10pm

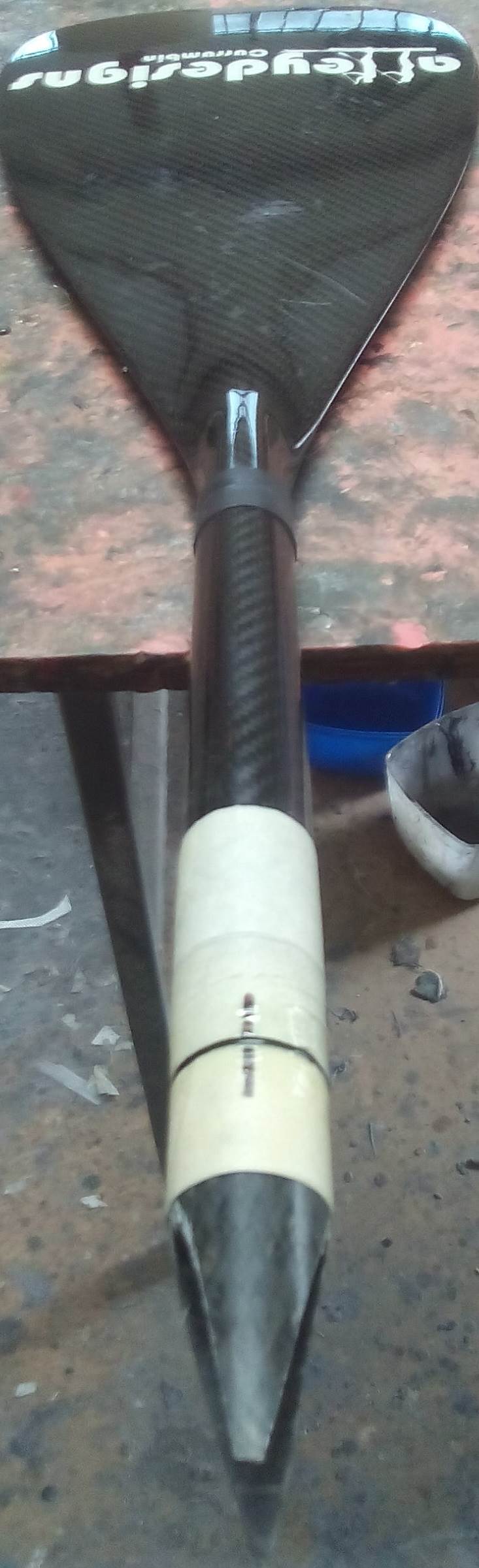

we were lucky I had a 15cm piece of Kialoa shaft that fitted inside this one so we tapered the ends of it to try and minimize the inevitable stress risers we are creating






husq2100
husq2100
QLD
2031 posts
QLD, 2031 posts
20 Aug 2015 6:19pm
nice work Latman

DavidJohn
DavidJohn
VIC
17570 posts
VIC, 17570 posts
20 Aug 2015 6:25pm
Great job.. What type of paddle were you fixing..
latman
latman
QLD
177 posts
QLD, 177 posts
20 Aug 2015 6:36pm
It has alley designs currumbin on it .
DavidJohn
DavidJohn
VIC
17570 posts
VIC, 17570 posts
20 Aug 2015 9:55pm
Those cut off top Kialoa pieces do come in handy..
latman
latman
QLD
177 posts
QLD, 177 posts
24 Aug 2015 5:01pm

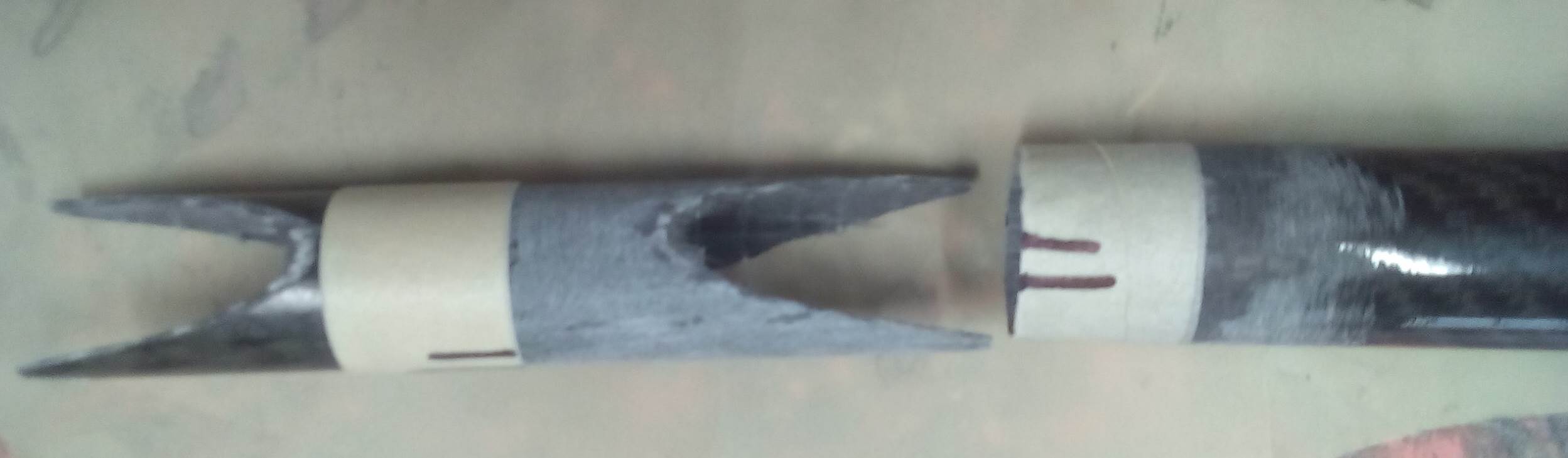

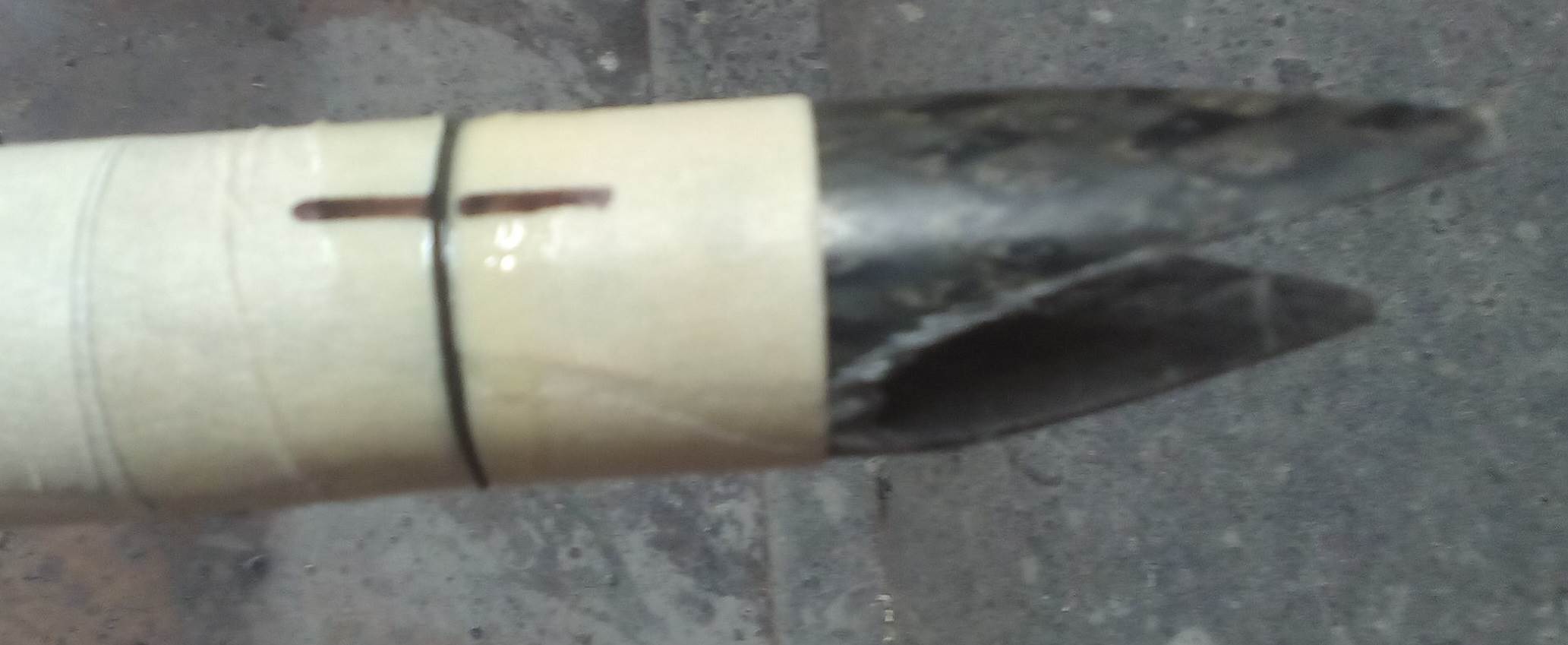

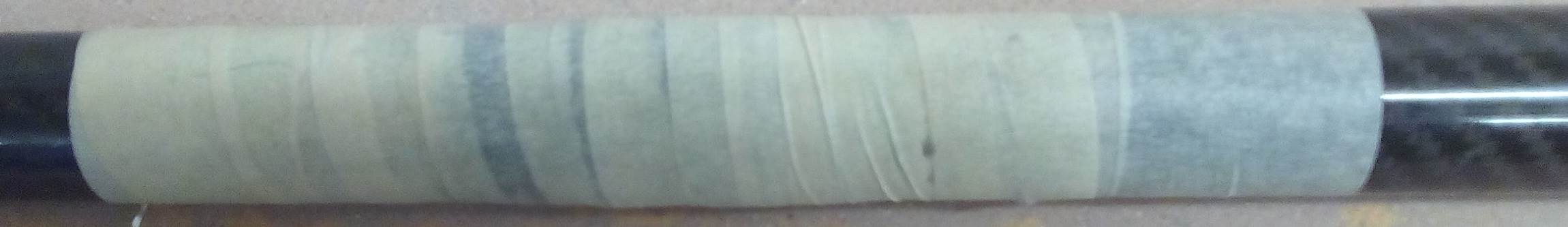

before and after wrapping , the before shot shows the glass/carbon layering of the broken shaft , and the after shot shows the simple masking tape used for compression




latman
latman
QLD
177 posts
QLD, 177 posts
26 Aug 2015 9:46am

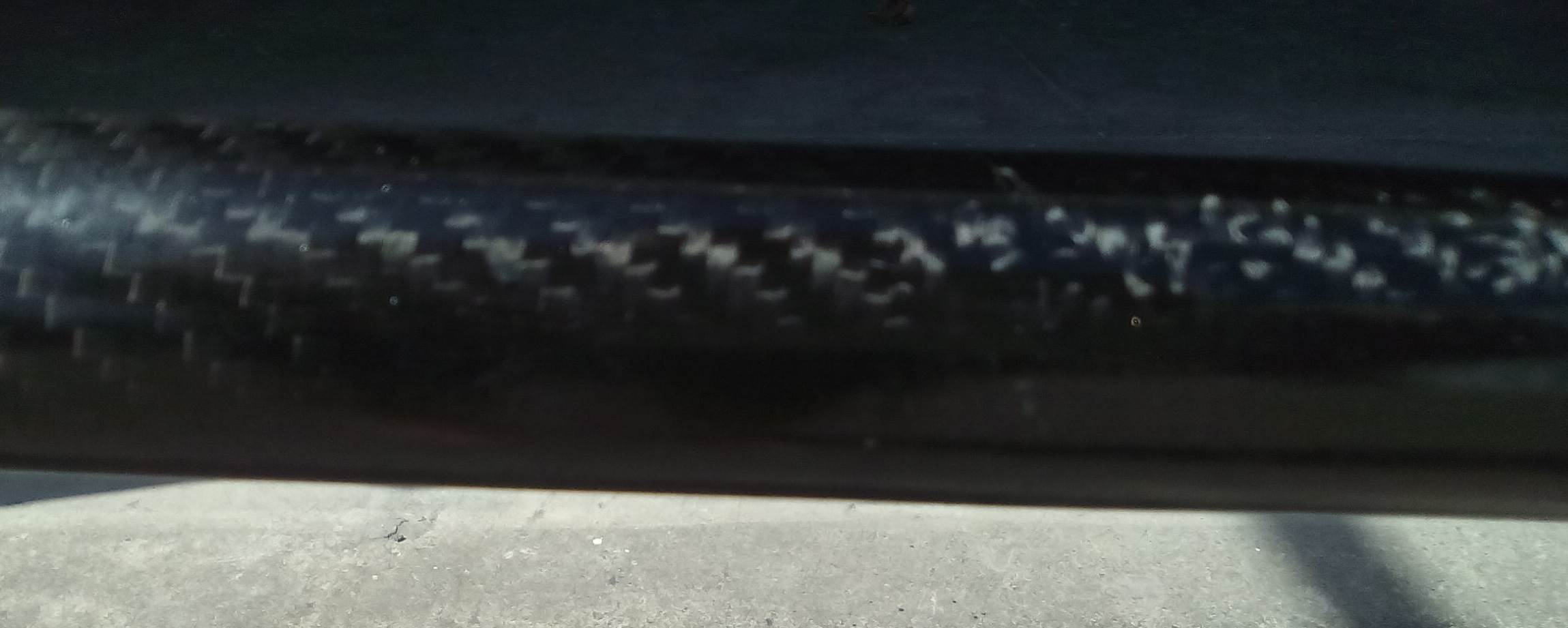

and after sanding and clearcoat it is all lovely again


husq2100
husq2100
QLD
2031 posts
QLD, 2031 posts
26 Aug 2015 10:27am
Do you taper the thickness of wrap from the centre of repair out? That is thinner further from the break?
latman
latman
QLD
177 posts
QLD, 177 posts
26 Aug 2015 5:50pm
yes it tapers to match the ground away original shaft
husq2100
husq2100
QLD
2031 posts
QLD, 2031 posts
26 Aug 2015 7:07pm
ok, more so I was thinking to transition the forces out progresively ie not an abrubt change...
latman
latman
QLD
177 posts
QLD, 177 posts
26 Aug 2015 10:15pm
the fabric wrap is replacing what was broken , and the inner sleeve was "beveled" on the ends to minimize that abrupt change (stress riser)
